FUF14DLRBWW CABINET & SHELVES

FUF14DLRBWW CABINET & SHELVES

Written by

in

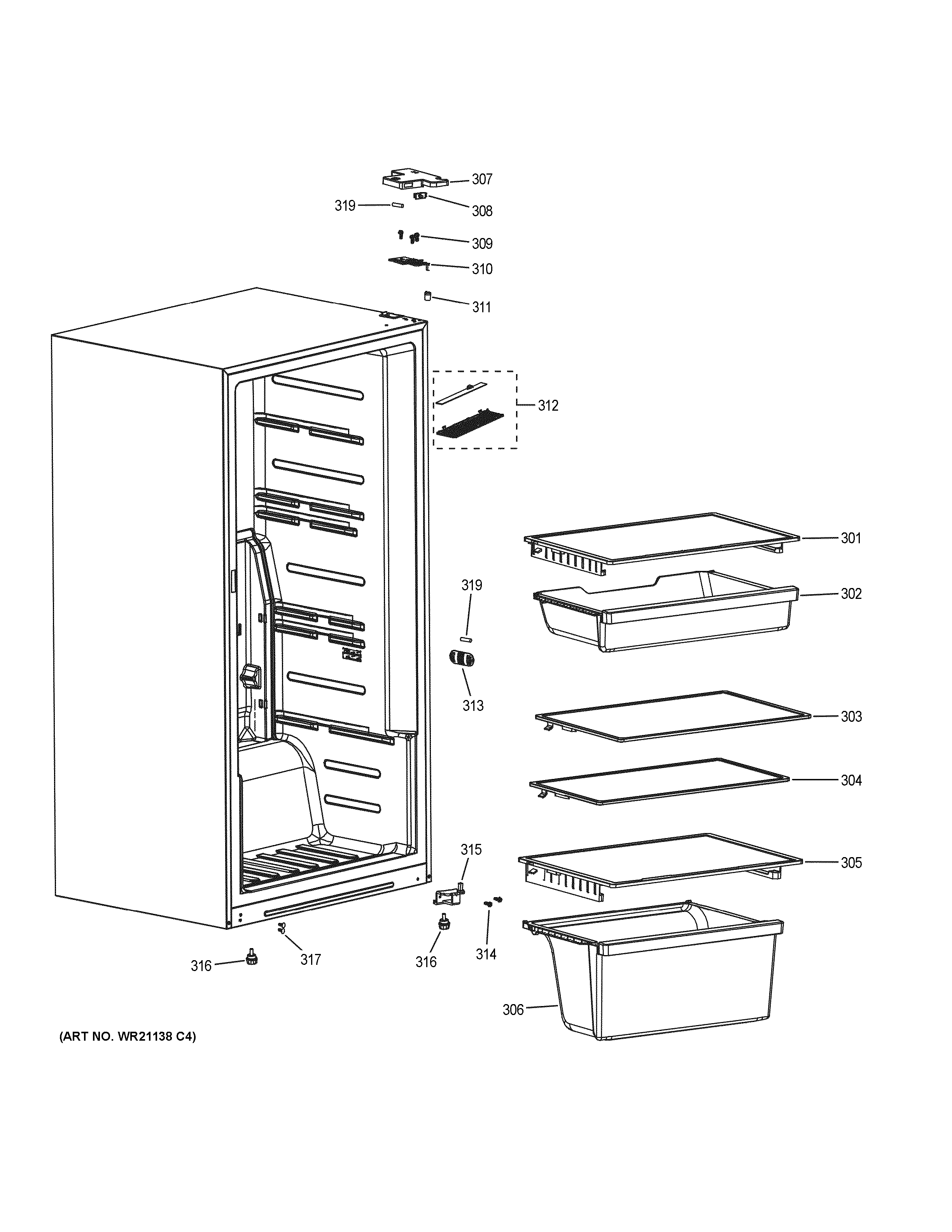

FUF14DLRBWW CABINET & SHELVES

Products

PositionProduct
301WR71X27210 GE Refrigerator Shelf Assembly Upper
302BIN FZ UPPER
303WR71X27209 GE Refrigerator Full Glass Shelf Assembly
304WR71X27208 GE Refrigerator Shelf Half Glass Assembly
305WR71X27211 GE Lower Shelf Assembly
306WR71X27205 GE Freezer Lower Bin
307WR13X27199 GE Refrigerator Hinge Cover Top
308WR01X27249 GE Refrigerator Door Switch
309SCREW
310WR13X27212 GE Hinged Top & Pin Assembly
311WR01X27239 GE Refrigerator Top Door Thimble
312WR01X27217 GE Refrigerator Cover LED & Lamp Assembly
313WR01X27194 GE Refrigerator Sensor Shunt
314SCREW
315WR13X27213 GE Refrigerator Bottom Hinge Assembly
316WR02X27190 GE Leveling Leg
317WR02X22735 GE Bottom Reversible Plug
319WR55X27914 GE Refrigerator Temperature Sensor
