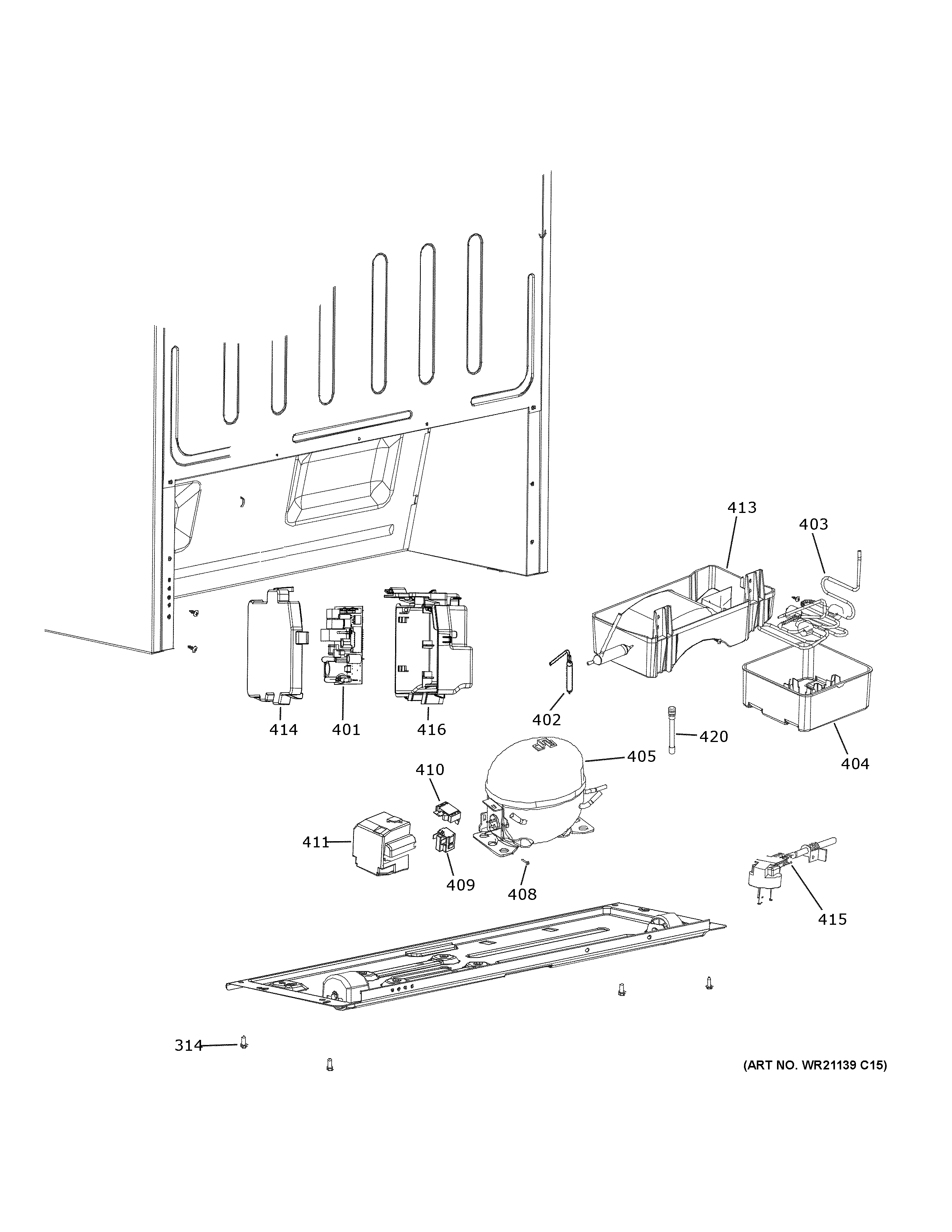

FUF14SMRFWW MACHINE COMPARTMENT

FUF14SMRFWW MACHINE COMPARTMENT

Written by

in

FUF14SMRFWW MACHINE COMPARTMENT

Products

PositionProduct
314SCREW
401WR55X43387 GE Main Control Board
402WR87X30875 GE Refrigerator R600 Dryer with Red Cap
403WR87X27227 GE Condenser Auxiliary Assembly
404COND AUX DRAIN TRAY
405WR87X32223 GE Compressor
408WR01X27222 GE Screw
409WR55X32224 GE Refrigerator Starter
410WR09X32225 GE Refrigerator Overload Protector
411WR01X27243 GE Refrigerator OL Protector Cover
413WR02X26260 GE Refrigerator Drain Tray
414WR02X43397 GE Main Control Board Cover
415POWER CORD
416WR02X43396 GE Control Board Housing Main
420WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
