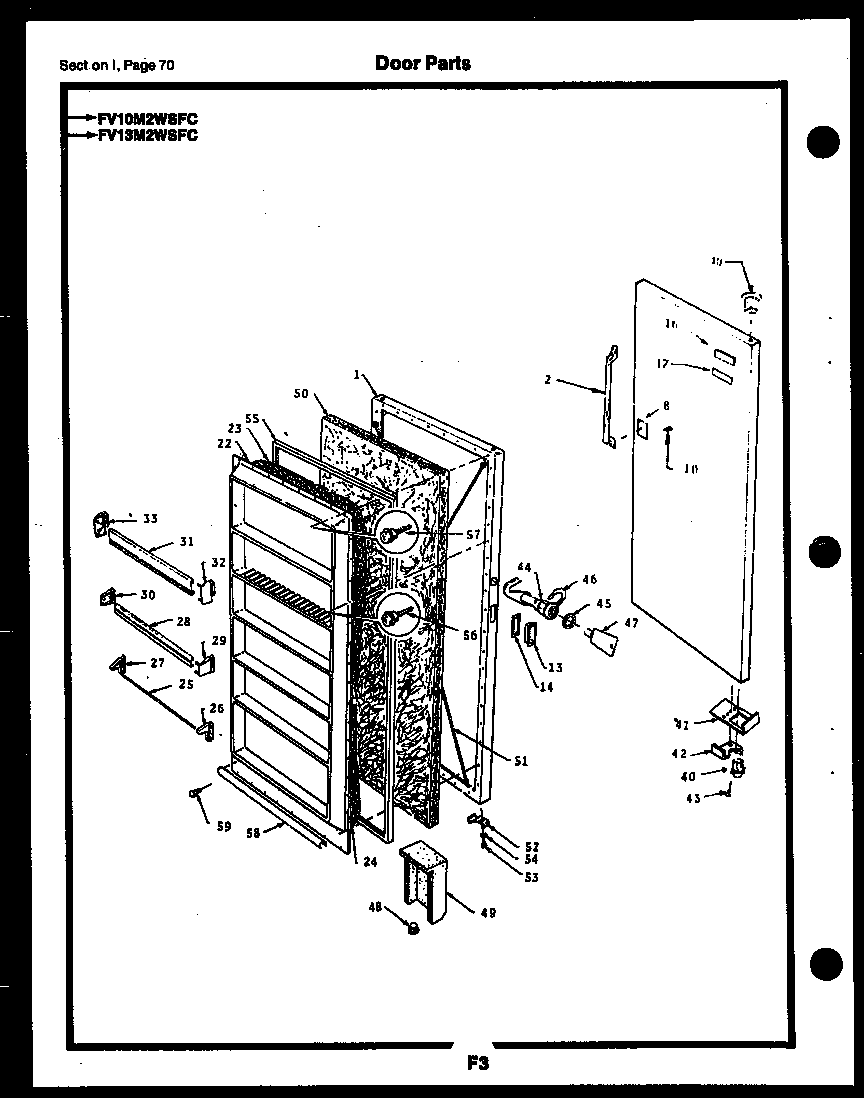

FV05M2WSFB 25 – DOOR PARTS

Products

Position	Product
1	PANEL-DOOR WHITE TEXT
1	DOOR SHELL
13	HANDLE RECESSED
14	WCI F112639
16	WCI F128767
17	TAPE NAMEPLATE (NON-ILLUSTRATED)
17	WCI F128760
22	INNER PANEL
22	PNL INSERT PNL
23	INSULATION, DIKES
25	SHELF-FRONT WIRE (4)
25	SHELF FRONT WIRE (4)
26	END CAP RH (4)
27	END CAP LH (4)
40	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI F84893
41	BRACKET-DOOR STOP
42	STO DOOR
43	SCREW-STOP
49	AIR DUCT BREATHER
50	WCI F116277
51	WIRE ADJUSTING (2)
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F122543-7
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	GASKET, SECONDARY
58	WCI F99439
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
