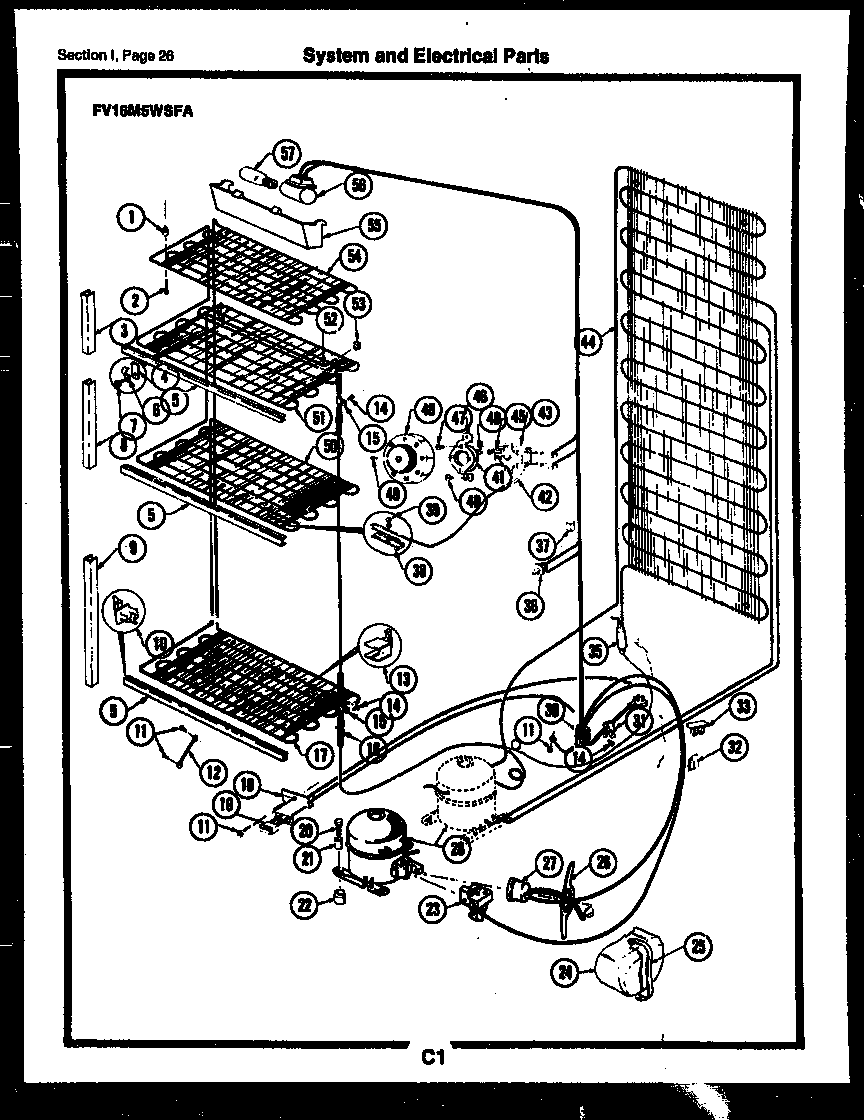

FV10M2WSFA 09 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	SPCR-TOPGRID FRONT (2)
1	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
2	WCI F115299
4	WASHER (3)
5	SHELF TRIM (3)
6	WCI F50732
7	WCI F57966
8	WCI F117243-8
9	WCI F117243-9
9	WCI F117243-3
10	SUPT FRONT RH (3)
10	297001600 Frigidaire Shelf Support
11	SCREW (5)
12	WCI F95424
13	WCI F117447
14	216858001 Frigidaire Refrigerator Screw
15	WCI F58105
16	WCI F58148-52
17	BOTTOM SHELF
18	WCI F116294
19	WCI F115065
20	WCI F59211
21	SLEEVE
22	216498900 Frigidaire Refrigerator Grommet
23	RELAY (NON-ILLUSTRATED)
24	WCI F116845
25	5303006412 Frigidaire Refrigerator Cover Mounting Strap
26	WCI F116846
27	OVERLOAD (NON-ILLUSTRATED)
28	WCI F116854
30	WCI F123895
31	5304455846 Frigidaire Refrigerator Clamp
32	WCI F59872
33	CLIP
35	5303305677 Frigidaire Replacement Filter Dryer Filters
36	5303289051 Frigidaire Refrigerator Light Switch
37	WCI F112321
38	WCI F96850
39	SCREW-CLAMP
40	216036601 Frigidaire Refrigerator Screw
41	SHIELD, COLD CONTROL
42	TUBE
43	COLD CONTROL
44	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
45	WCI F125347
46	BRKT
47	SCREW CONTROL
48	WCI F120876
49	SCREW KNOB
50	WCI F125251
51	FIRST SHELF
52	WCI F125249
53	WCI F86523
54	WCI F121179
55	WCI F120853
56	SOCKET
57	WCI F92472
