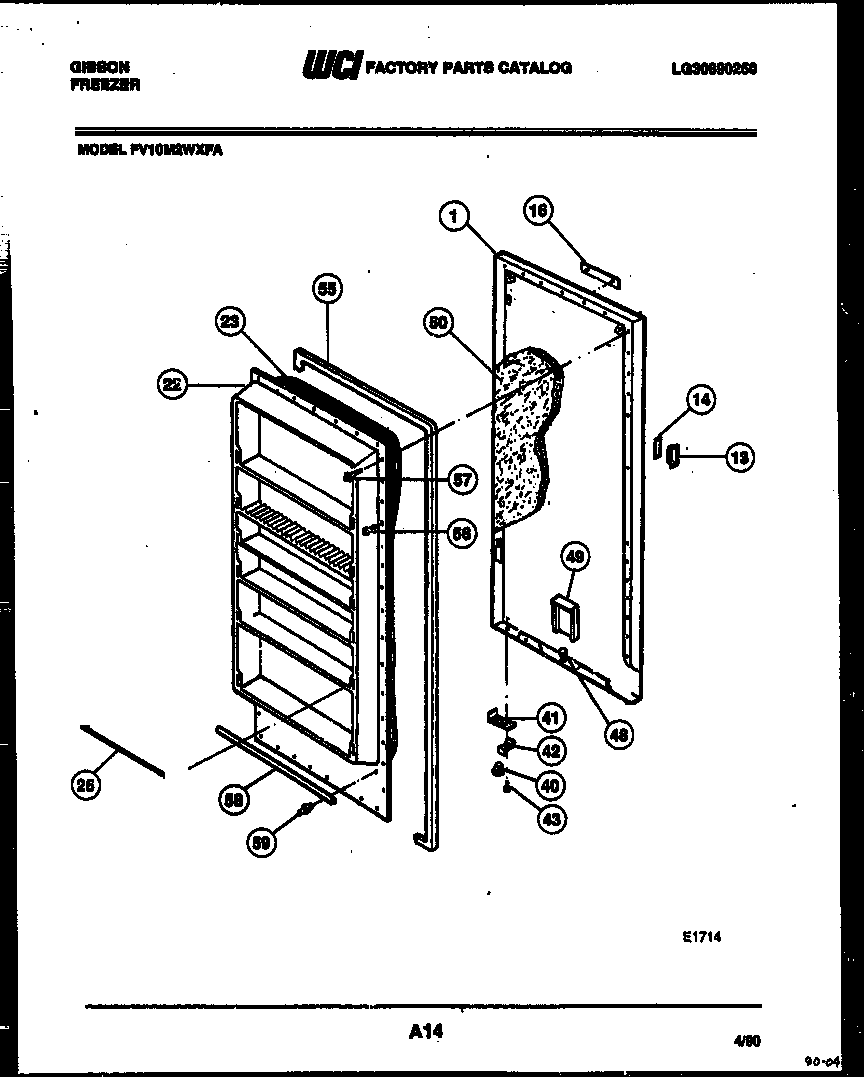

FV10M2WXFA 02 – DOOR PARTS

Products

PositionProduct
1DOOR SHELL
13WCI 5300112637
14GASKET, WHITE
16WCI 5303209948
22WCI F129635
23INSULATION (CUT TO SIZE)
25WCI 3017745
40WCI 5306593364
40297006800 Frigidaire Refrigerator Bearing Hinge
41WCI 5300091170
42DOOR STOP
43Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
48Valve,breather ,door base
49WCI 5300128421
50INSULATION-BULK (NON-ILLUSTRATED)
55WCI 3206236
56216858001 Frigidaire Refrigerator Screw
57WCI 08009384
58WCI 08009385
595303212828 Frigidaire Refrigerator Primary Clip
