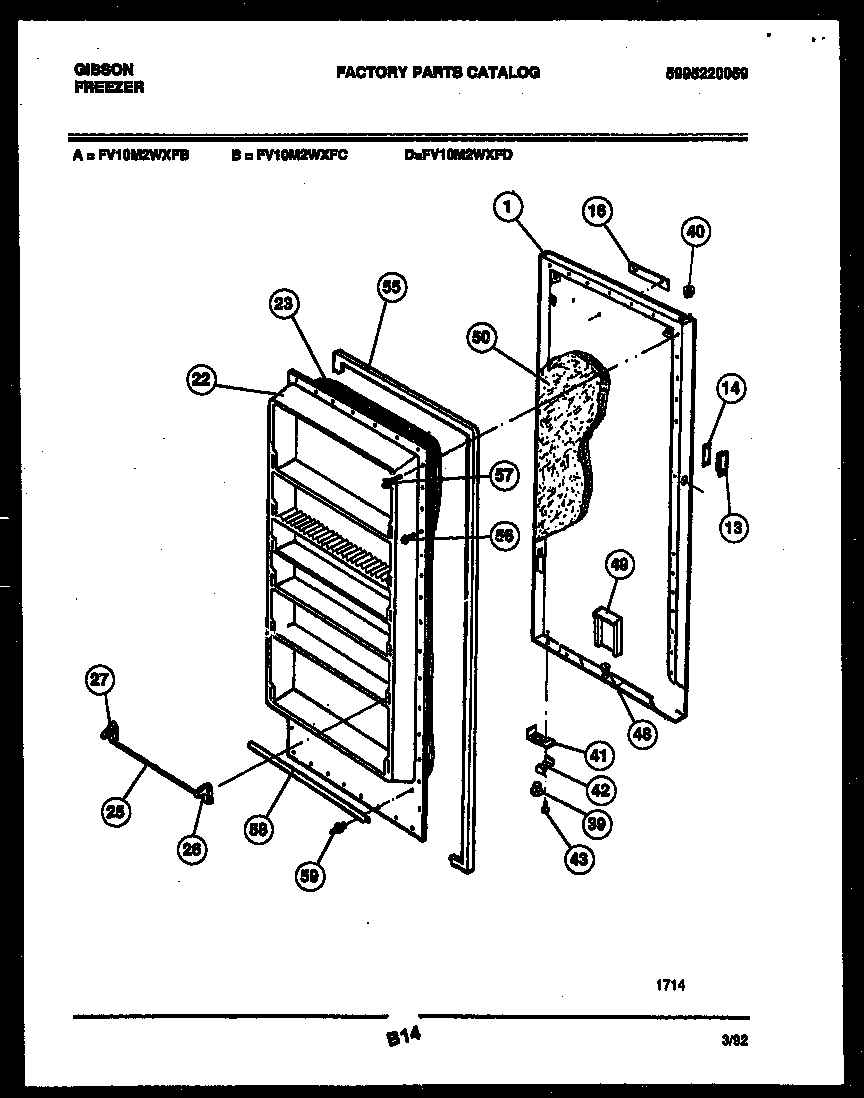

FV10M2WXFC 02 – DOOR PARTS

Products

Position	Product
1	DOOR SHELL
13	WCI 5300112637
14	GASKET, WHITE
16	WCI 5303270937
22	WCI F129635
23	INSULATION (CUT TO SIZE)
25	WCI 3017745
26	WCI F000091776
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
55	WCI 3206236
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 08009385
59	5303212828 Frigidaire Refrigerator Primary Clip
