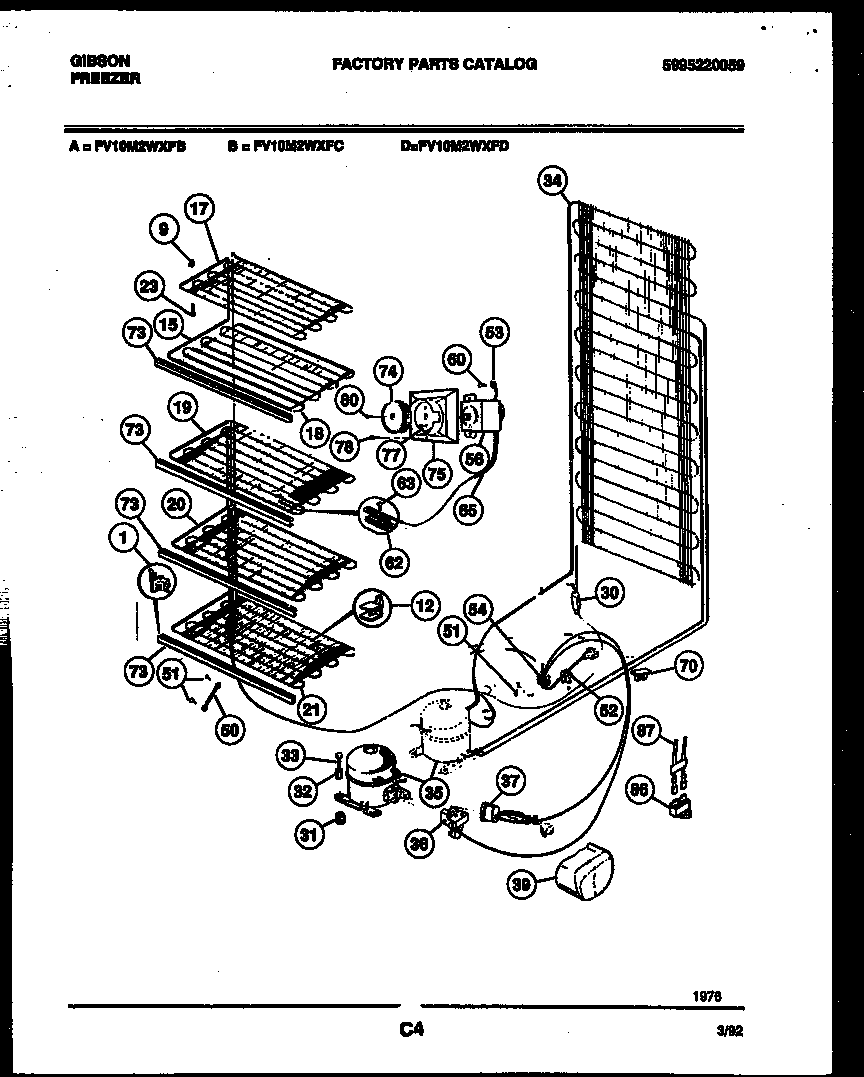

FV10M2WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

FV10M2WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FV10M2WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1A297001600 Frigidaire Shelf Support
1297001500 Frigidaire Shelf Support
9SPCR-TOPGRID FRONT (2)
9AWCI 8037929
12WCI 09949960
15WCI 5308010744
17WCI 08010734
18WCI 08010735
19WCI 08010736
21WCI 08010737
23SCREW
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE-COMPRESSOR
33CREW COMPR MTG
34WCI F124042
35COMPRESSOR WITH ELECTRICALS
36WCI 5303017753
37WCI 5303206816
39COVER
50WCI 06594651
525304455846 Frigidaire Refrigerator Clamp
53WIRE-GROUND, TEMP CONTROL
54WCI 5303281366
56CONTROL TEMP
59RETAINER, WIRE, BREAKER
60216036601 Frigidaire Refrigerator Screw
61CAP. CLIP (2)
62CLAMP, CAP TUBE, COLD CONTROL
63SCREW, CLAMP, TRUSS HD CR, CONTROL
65TUBE
70WCI 06599553
73FRONT-SHELF (3)
74KNOB
75HOUSING
77SCREW, COVER CONTROL
78131420300 Frigidaire Screw
80WCI 09950853
81216858001 Frigidaire Refrigerator Screw
865304464438 Frigidaire Compressor Run Capacitor
87HARNESS CAPACITOR
