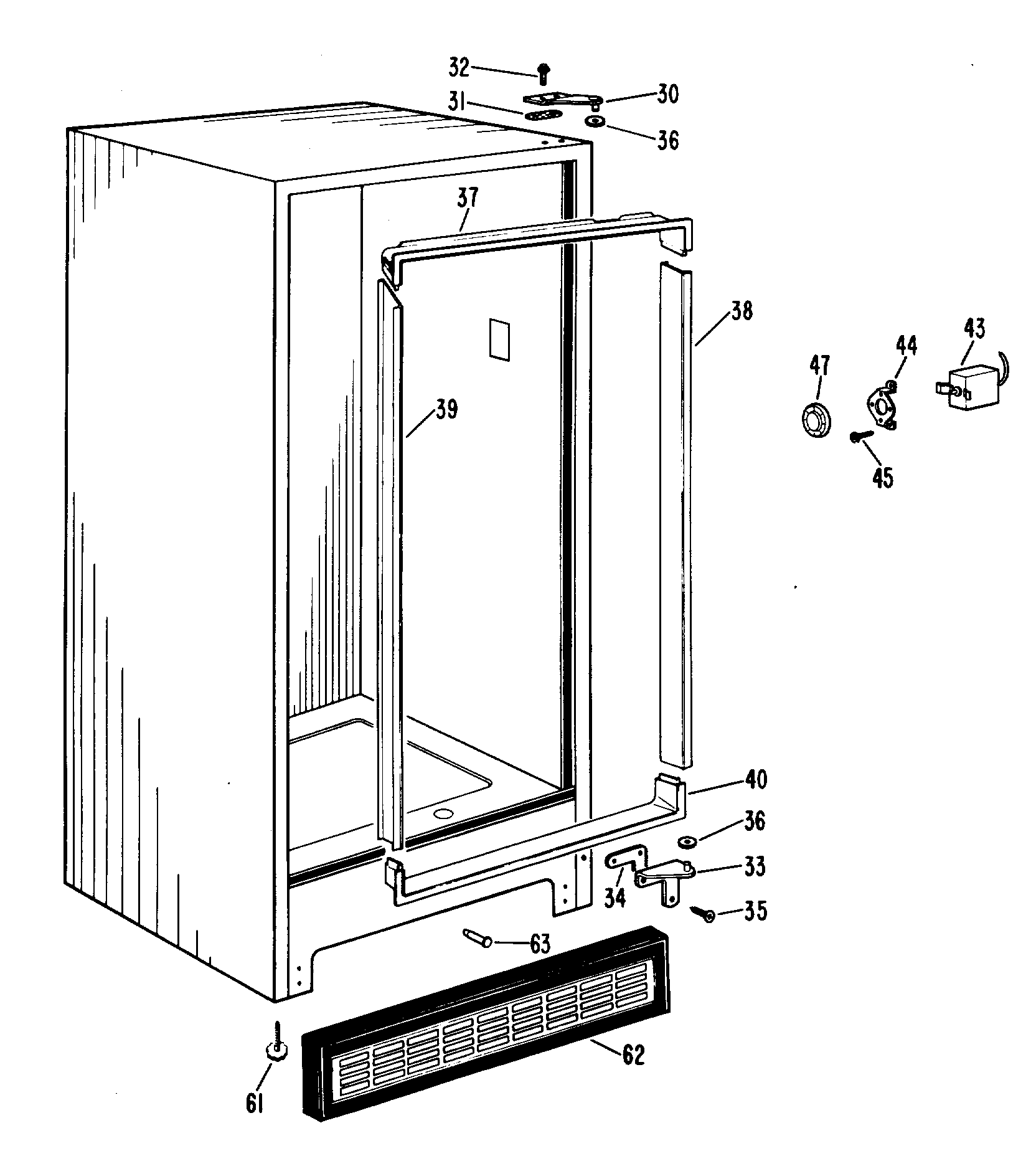

| 30 | NUTSTRIP-HINGE |
| 30 | TOP HINGE |
| 31 | SHIM-HINGE |
| 32 | SCREW-HINGE |
| 33 | HINGE-BOTTOM |
| 33 | TAPPING-PLATE |
| 34 | GEN WR02X6354 |
| 35 | SCREW-HINGE |
| 36 | WASHER |
| 37 | GEN WR40X5446 |
| 37 | SPACER BREAKER |
| 38 | GEN WR40X5448 |
| 39 | CLIP BOTTOM BREAKER |
| 39 | GEN WR40X5449 |
| 40 | GEN WR40X5447 |
| 43 | GEN WR09X5198 |
| 43 | WR2X9500 GE Refrigerator Insulator |
| 44 | GEN WR02X6311 |
| 45 | SCREW HSG. |
| 47 | GEN WR02X6310 |
| 47 | SCREW-KNOB |
| 61 | GEN WR02X5523 |
| 62 | GEN WR02X6271 |
| 62 | GEN WR79X5152 |
| 63 | GEN WR02X6270 |
