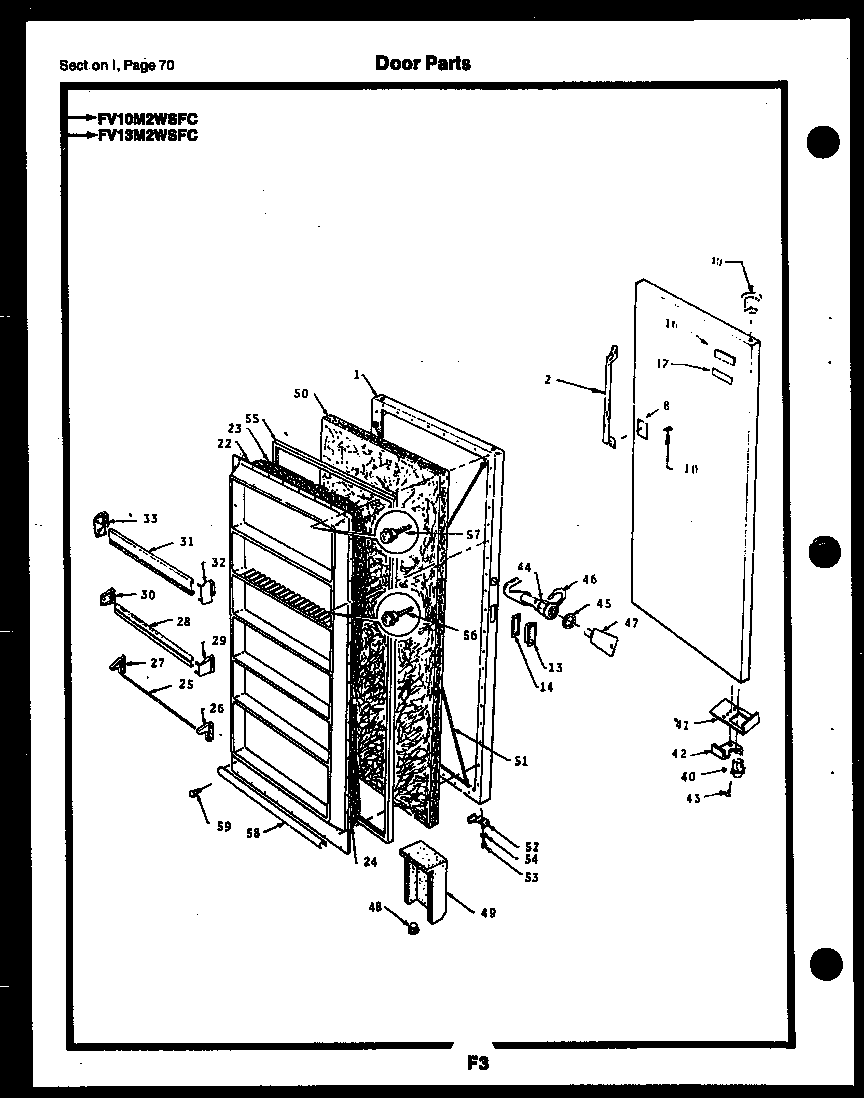

FV13M2WSFC 25 – DOOR PARTS

FV13M2WSFC 25 – DOOR PARTS

Written by

in

FV13M2WSFC 25 – DOOR PARTS

Products

PositionProduct
1PANEL-DOOR WHITE TEXT
13HANDLE RECESSED
14WCI F112639
16WCI F128767
17ATAPE NAMEPLATE (NON-ILLUSTRATED)
17WCI F128760
23INSULATION, DIKES
26END CAP RH (4)
27END CAP LH (4)
40AWCI F84893
40297006800 Frigidaire Refrigerator Bearing Hinge
41BRACKET-DOOR STOP
42STO DOOR
43SCREW-STOP
49AIR DUCT BREATHER
50WCI F116277
51WIRE ADJUSTING (2)
52WCI F57880
53SCREW, BRACKET (2)
54WASHER BRACKET (2)
55WCI F122543-7
56216858001 Frigidaire Refrigerator Screw
57SCREW-PANEL
58WCI F99439
595303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
