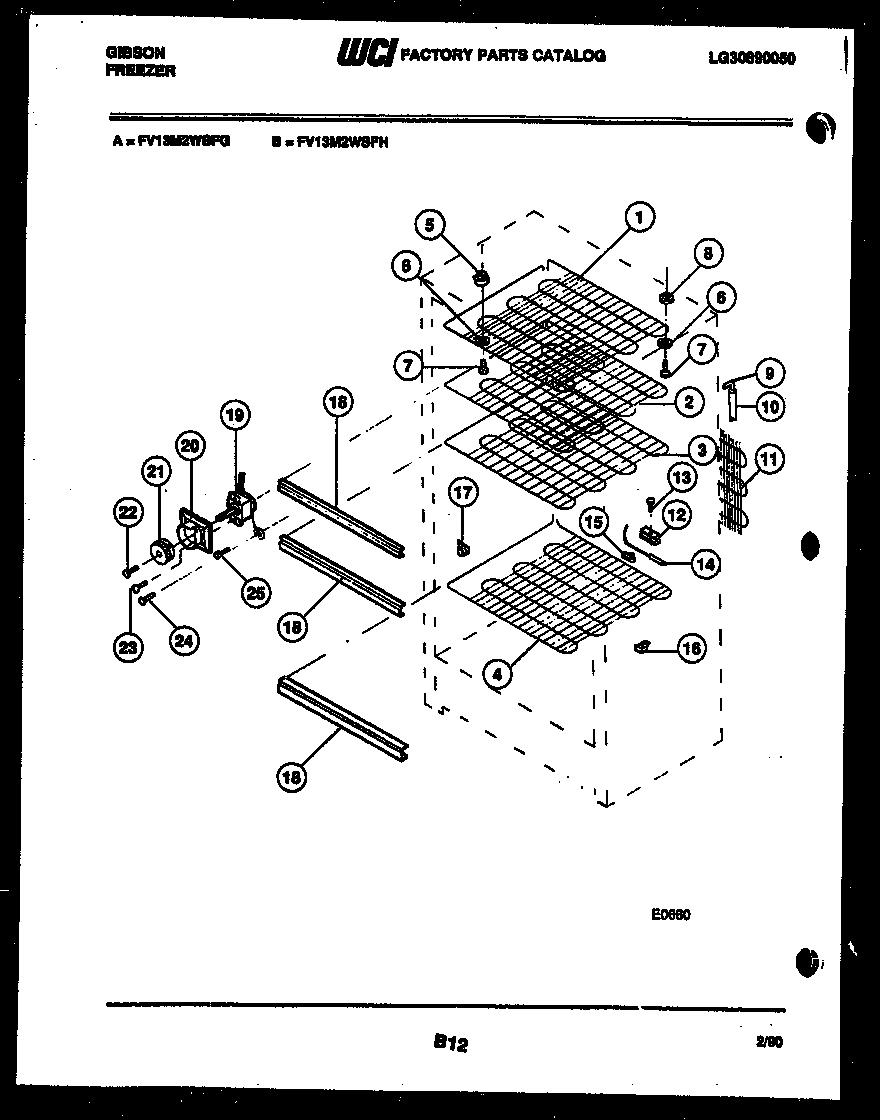

FV13M2WSFG 04 – SHELVES AND SUPPORTS

FV13M2WSFG 04 – SHELVES AND SUPPORTS

Written by

in

FV13M2WSFG 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI F121174
2WCI F121175
3WCI F125270
4WCI F121177
5SPCR-TOPGRID FRONT (2)
6WASHER (3)
7WCI F126260
8SPCR-TOP GRID REAR (NON-ILLUSTRATED)
9WCI F125274
10WCI F58148-58
115300123788 Frigidaire Refrigerator Condenser
12WCI F96850
13SCREW-CLAMP
14TUBE
15WCI F117447
16297001600 Frigidaire Shelf Support
17297001500 Frigidaire Shelf Support
18SHELF TRIM (3)
19WCI F126974
20WCI F128633
21KNOB, COLD CONTROL
22SCREW KNOB
23SCREW CONTROL
24131420300 Frigidaire Screw
25216036601 Frigidaire Refrigerator Screw
