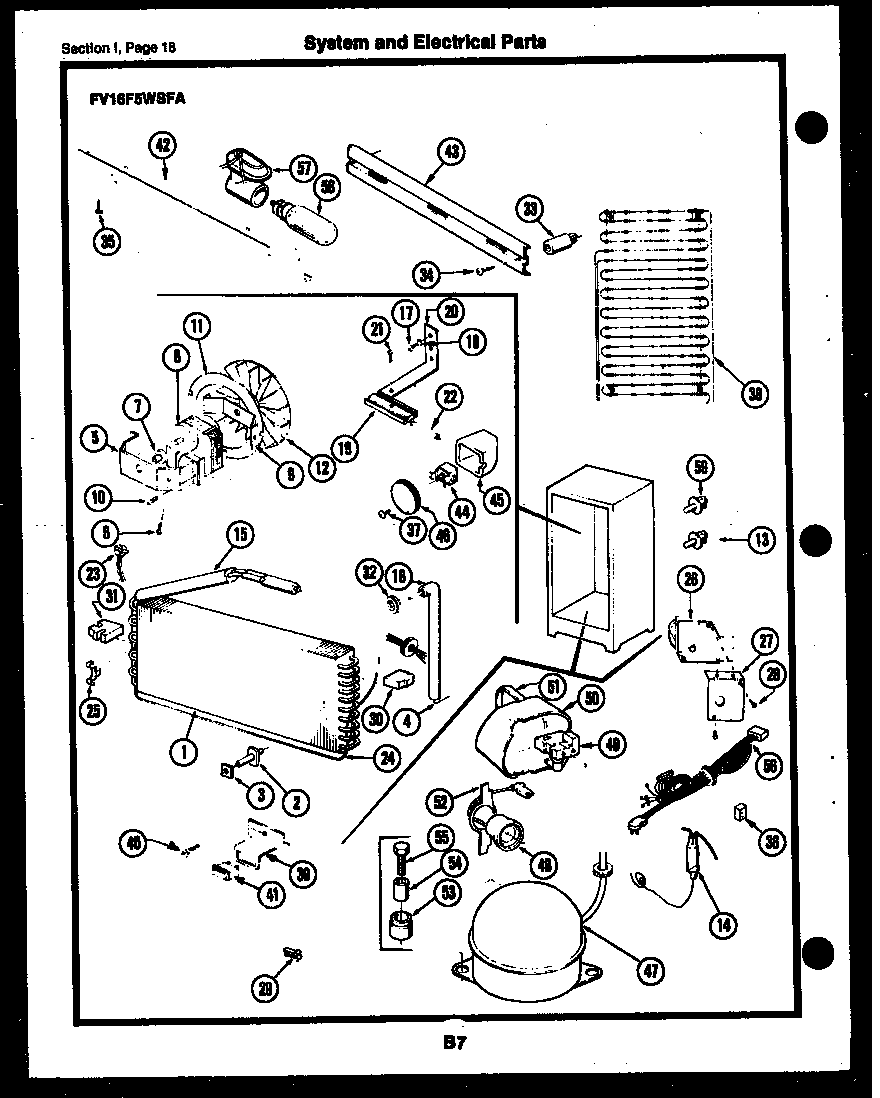

FV16F5WSFA 07 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	WCI F112197
2A	SPACER (2) (NON-ILLUSTRATED)
2	WCI F111731
3	SPACER
4	HEAT EXCHANGER
5	WCI F127112
6	FAN-MOTOR
7	G187559 Frigidaire Refrigerator Bushing
9	BRACKET FAN
11	ORIFICE RING
12	PADDLE WHEEL
13	5303289051 Frigidaire Refrigerator Light Switch
14	5303305677 Frigidaire Replacement Filter Dryer Filters
15	INSULATION
16	WCI F58148-46
17	216036601 Frigidaire Refrigerator Screw
18	WCI F95480
19	WCI F52940
20	WCI F88658
21	SCREW-CLAMP
22	TUBE
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	HEATER
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	5304518034 Frigidaire Refrigerator Defrost Timer
27	WCI F111694
28	WCI F52447
29	WCI F59872
30	WCI F111726
31	WCI F111727
32	WCI F92161
33	WCI F117151
34	216858001 Frigidaire Refrigerator Screw
35	SCREW (2)
36	WCI F112321
37	SCREW KNOB
37A	WCI F95424
38	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
39	WCI F116294
40	SCREW (5)
41	WCI F126159
42	WCI F121360
43	WCI F120871
44	WCI F126977
45	WCI F111759
46A	CLIP
46	KNOB
47	WCI F127169
48	WCI F127166
49	WCI F127165
51	5303006412 Frigidaire Refrigerator Cover Mounting Strap
52	CLIP
53	216498900 Frigidaire Refrigerator Grommet
54	SLEEVE
55	WCI F59211
56	WCI F126950
57	SOCKET
58	WCI F92472
