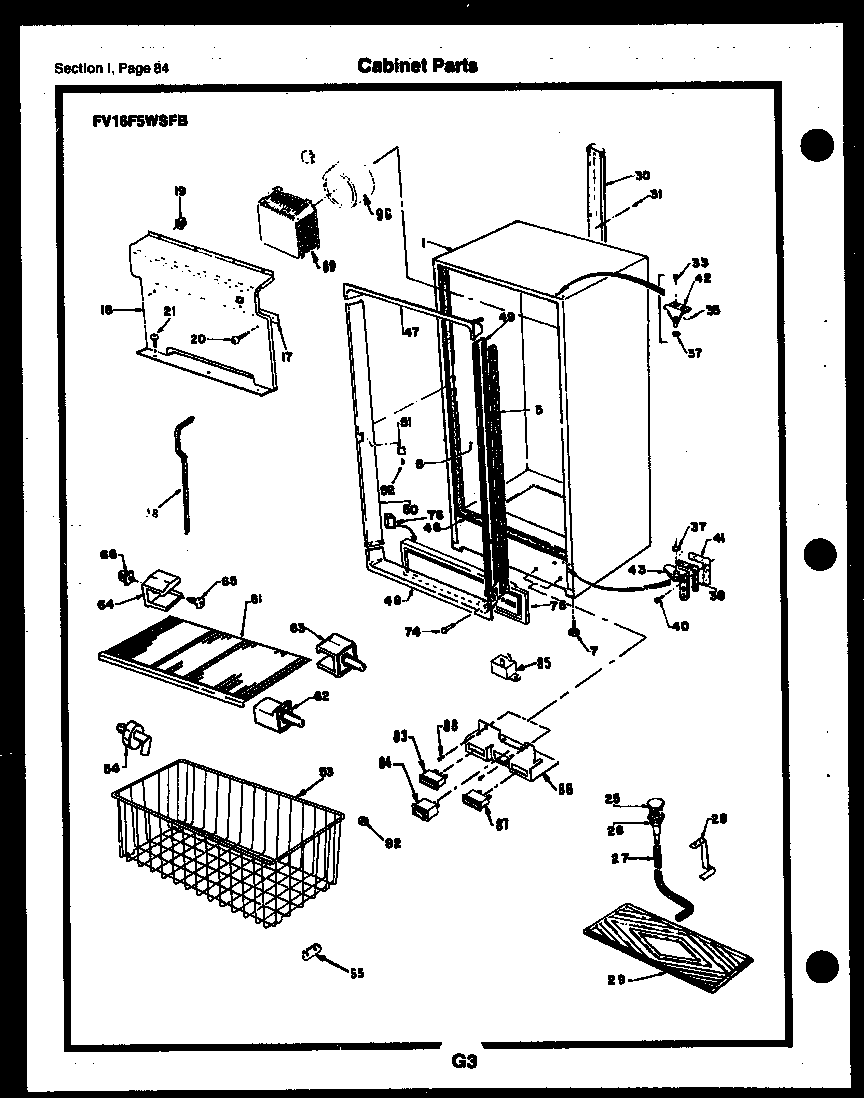

FV16F5WSFA 32 – CABINET PARTS

Products

Position	Product
1	INSULATION
7	LEVELING LEG (4)
10	HOUSING
13	WCI F91574-1
16	WCI F111725
17	WCI F111732
18	WCI F111782
19	WCI F50144
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI F93775
29	DRAIN PAN (NOT ORIGINAL EQUIPMENT--CUSTOMER OPTION ONLY.
30	WCI F91583-10
31	WCI F96849
33	SCREW-HINGE-FRONT
35	PLATE-TOP
37	BEARING, HINGE (3)
37	297006800 Frigidaire Refrigerator Bearing Hinge
38	WCI F120978
39	WCI F124610
40	154518001 Frigidaire Refrigerator Screw
41	WCI F84948
42	WCI F93193
43	WCI F84943
43	SPACER, TOP BREAKER (2)
46	CLIP BREAKER (4)
47	BREAKER, TOP
48	BREAKER-BOTTOM
49	BREAKER, HNG SIDE
50	BREAKER-LOCK SIDE
51	WCI F117634
52	216858001 Frigidaire Refrigerator Screw
53	5304497658 Frigidaire Refrigerator Basket
54	BUMPER-BASKET
55	WCI F124849-1
55	08009560 Frigidaire 0 Basket Glide
61	WCI F117074-1
61	WCI F117074-2
62	SUPT LH (5)
62	WCI F110931
63	SUPPORT (4)
64	WCI F86224
65	WCI F59837
66	INSERT-NUT (2)
74	WCI F118001
75	TOE GRILLE
76	WCI F118003
79	WCI F121216
80	WCI F119952
82	5305878546 Frigidaire Refrigerator Bumper-Basket
