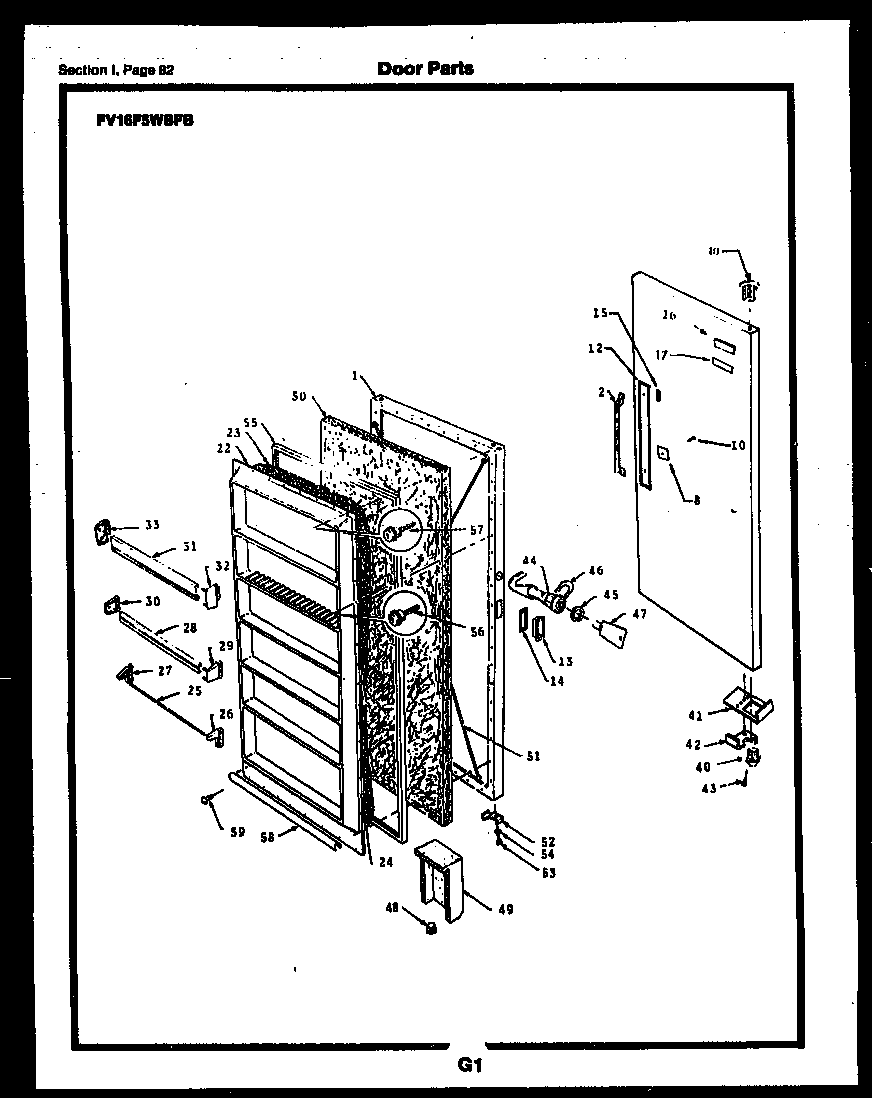

FV16F5WSFB 31 – DOOR PARTS

Products

Position	Product
1	WCI F129300-64
2	WCI F119165
8	WCI F115980
10	WCI F111365
16	WCI F128768
17	WCI F128760
17A	TAPE NAMEPLATE (NON-ILLUSTRATED)
22	WCI F127155-95
23	INSULATION, DIKES
24	WCI F85145-50
28	WCI F127157
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40A	WCI F84893
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	STO DOOR
43	SCREW-STOP
44	WCI F128816
45	WASHER
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116277
51	WCI F57688-22
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F122543-3
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	WCI F99438
59	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
