FV16F5WSFB 32 – CABINET PARTS

FV16F5WSFB 32 – CABINET PARTS

Written by

in

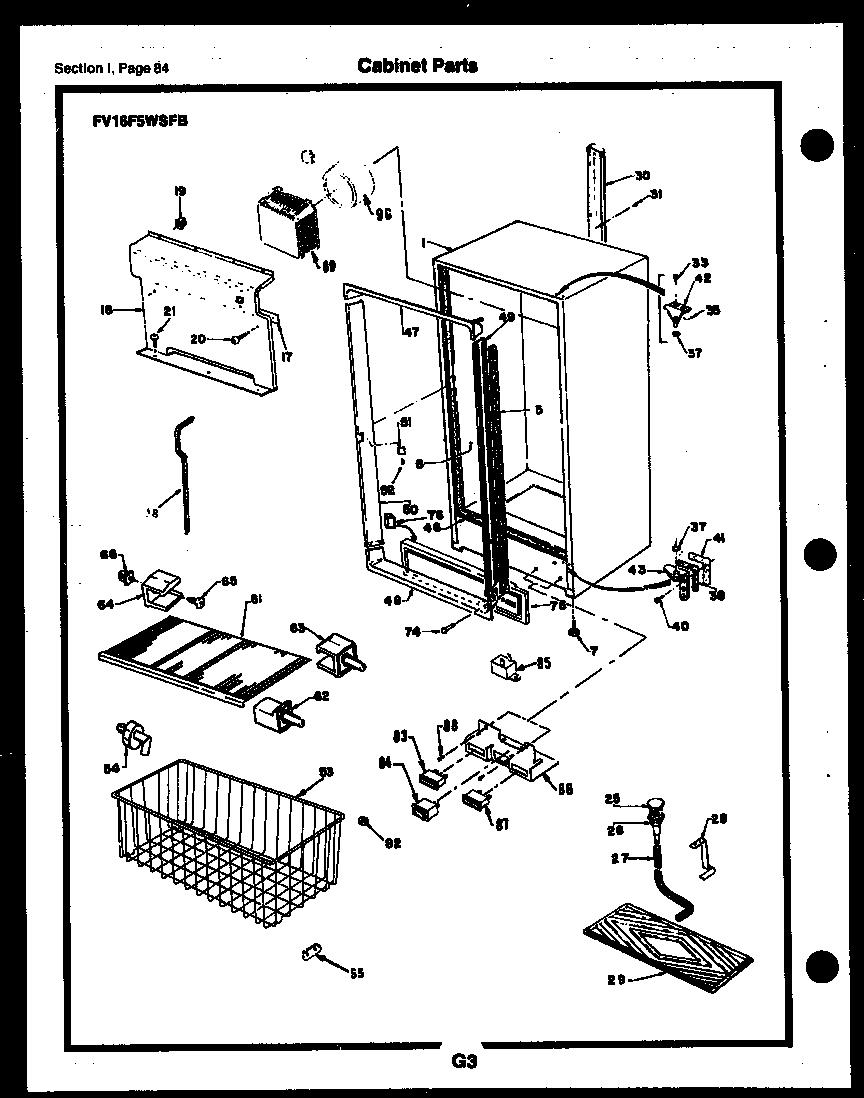

FV16F5WSFB 32 – CABINET PARTS

Products

PositionProduct
1INSULATION
7LEVELING LEG (4)
10HOUSING
13WCI F91574-1
16WCI F111725
17WCI F111732
18WCI F111782
19WCI F50144
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI F93775
29DRAIN PAN (NOT ORIGINAL EQUIPMENT–CUSTOMER OPTION ONLY.
30WCI F91583-10
31WCI F96849
33SCREW-HINGE-FRONT
35PLATE-TOP
37ABEARING, HINGE (3)
37297006800 Frigidaire Refrigerator Bearing Hinge
38WCI F120978
39WCI F124610
40154518001 Frigidaire Refrigerator Screw
41WCI F84948
42WCI F93193
43WCI F84943
43ASPACER, TOP BREAKER (2)
46CLIP BREAKER (4)
47BREAKER, TOP
48BREAKER-BOTTOM
49BREAKER, HNG SIDE
50BREAKER-LOCK SIDE
51WCI F117634
52216858001 Frigidaire Refrigerator Screw
535304497658 Frigidaire Refrigerator Basket
54BUMPER-BASKET
55AWCI F124849-1
5508009560 Frigidaire 0 Basket Glide
61WCI F117074-1
61AWCI F117074-2
62ASUPT LH (5)
62WCI F110931
63SUPPORT (4)
64WCI F86224
65WCI F59837
66INSERT-NUT (2)
74WCI F118001
75TOE GRILLE
76WCI F118003
79WCI F121216
80WCI F119952
825305878546 Frigidaire Refrigerator Bumper-Basket
