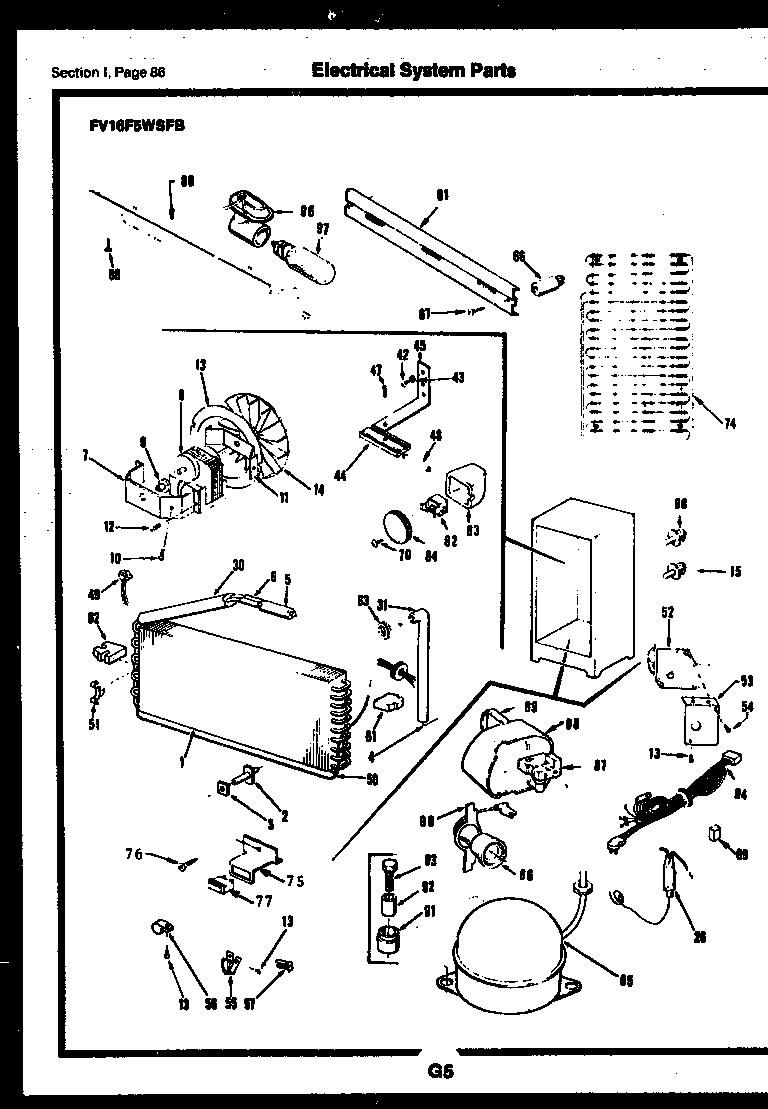

FV16F5WSFB 33 – ELECTRICAL SYSTEM PARTS

Products

Position	Product
1	WCI F126840
2	WCI F111731
3	SPACER
3A	SPACER (2) (NON-ILLUSTRATED)
4	HEAT EXCHANGER
7	WCI F127112
8	FAN-MOTOR
9	G187559 Frigidaire Refrigerator Bushing
11	BRACKET FAN
13	ORIFICE RING
14	PADDLE WHEEL
15	5303289051 Frigidaire Refrigerator Light Switch
26	5303305677 Frigidaire Replacement Filter Dryer Filters
30	INSULATION
31	WCI F58148-46
42	216036601 Frigidaire Refrigerator Screw
43	WCI F95480
44	WCI F52940
45	WCI F88658
47	SCREW-CLAMP
48	TUBE
49	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50	HEATER
51	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52	5304518034 Frigidaire Refrigerator Defrost Timer
53	WCI F111694
54	WCI F52447
57	WCI F59872
61	WCI F111726
62	WCI F111727
63	WCI F92161
66	WCI F117151
67	216858001 Frigidaire Refrigerator Screw
68	SCREW (2)
69	WCI F112321
70	SCREW KNOB
70A	WCI F95424
74	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
75	WCI F116294
76	SCREW (5)
77	WCI F126159
80	WCI F128051
81	WCI F120871
82	WCI F113899
83	WCI F111759
84	WCI F127762
84A	CLIP
85	WCI F127169
86	WCI F127166
87	WCI F127165
89	5303006412 Frigidaire Refrigerator Cover Mounting Strap
90	CLIP
91	216498900 Frigidaire Refrigerator Grommet
92	SLEEVE
93	WCI F59211
94	WCI F128552
96	SOCKET
97	WCI F92472
