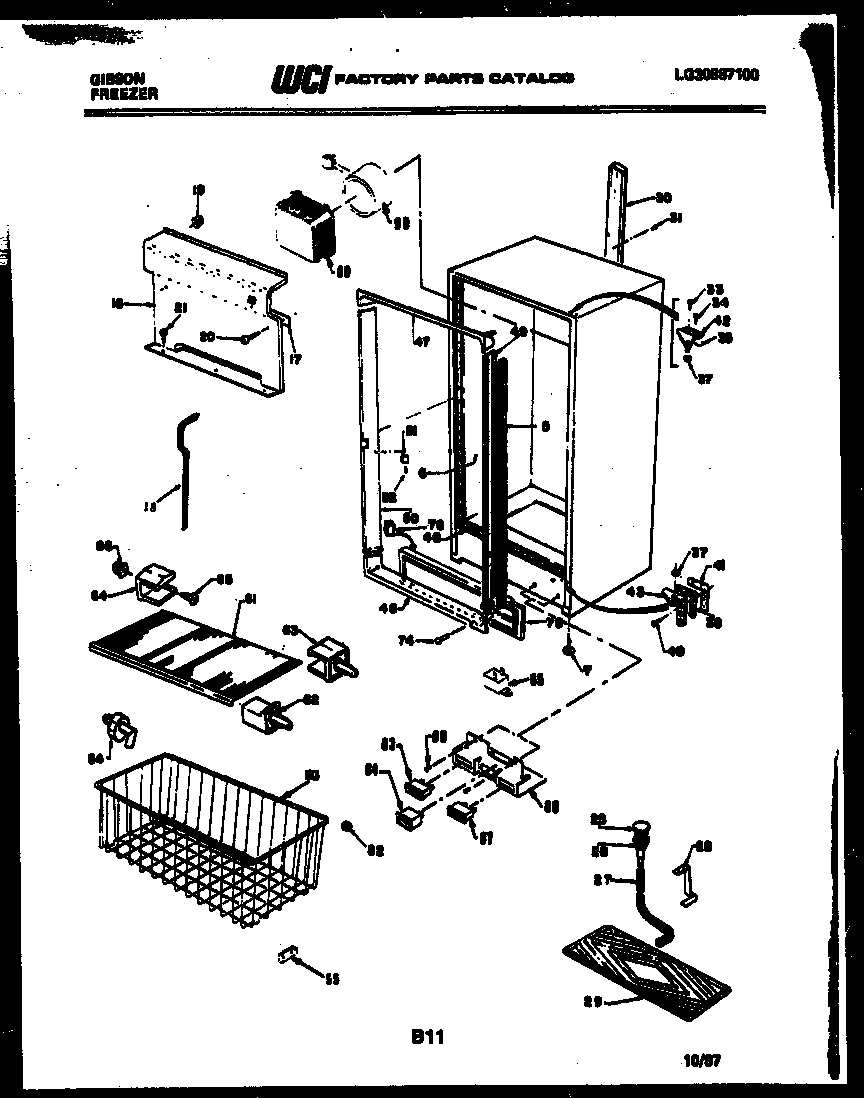

FV16F5WSFD 03 – CABINET PARTS

Products

Position	Product
5A	INSULATION
5	WCI F86843
7	LEVELING LEG (4)
16	WCI F111725
17	WCI F111732
18	WCI F111782
19	WCI F50144
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI F93775
29	DRAIN PAN (NOT ORIGINAL EQUIPMENT--CUSTOMER OPTION ONLY.
30	WCI F91583
31	WCI F96840
33	SCREW-HINGE-FRONT
35	PLATE-TOP
36	WCI F300450
37	297006800 Frigidaire Refrigerator Bearing Hinge
37	BEARING, HINGE (3)
38	WCI F120978
39	WCI F124610
40	154518001 Frigidaire Refrigerator Screw
41	WCI F84948
42	WCI F300271
43A	SPACER, TOP BREAKER (2)
43	WCI F84943
46	CLIP BREAKER (4)
47	BREAKER, TOP
48	BREAKER-BOTTOM
49	BREAKER-HINGE SIDE
50	BREAKER-LOCK SIDE
51	WCI F117634
52	216858001 Frigidaire Refrigerator Screw
53	5304497658 Frigidaire Refrigerator Basket
54	BUMPER-BASKET
55	08009560 Frigidaire 0 Basket Glide
56	WCI F124849-1
61	SHELF LOWER
61	WCI F300042
62	SUPT LH (5)
62	WCI F110931
63	SUPPORT (4)
64	WCI F86224
65	WCI F59837
66	INSERT-NUT (2)
74	WCI F118001
75	TOE GRILLE
76	WCI F118003
79	WCI F121216
80	WCI F119952
82	5305878546 Frigidaire Refrigerator Bumper-Basket
