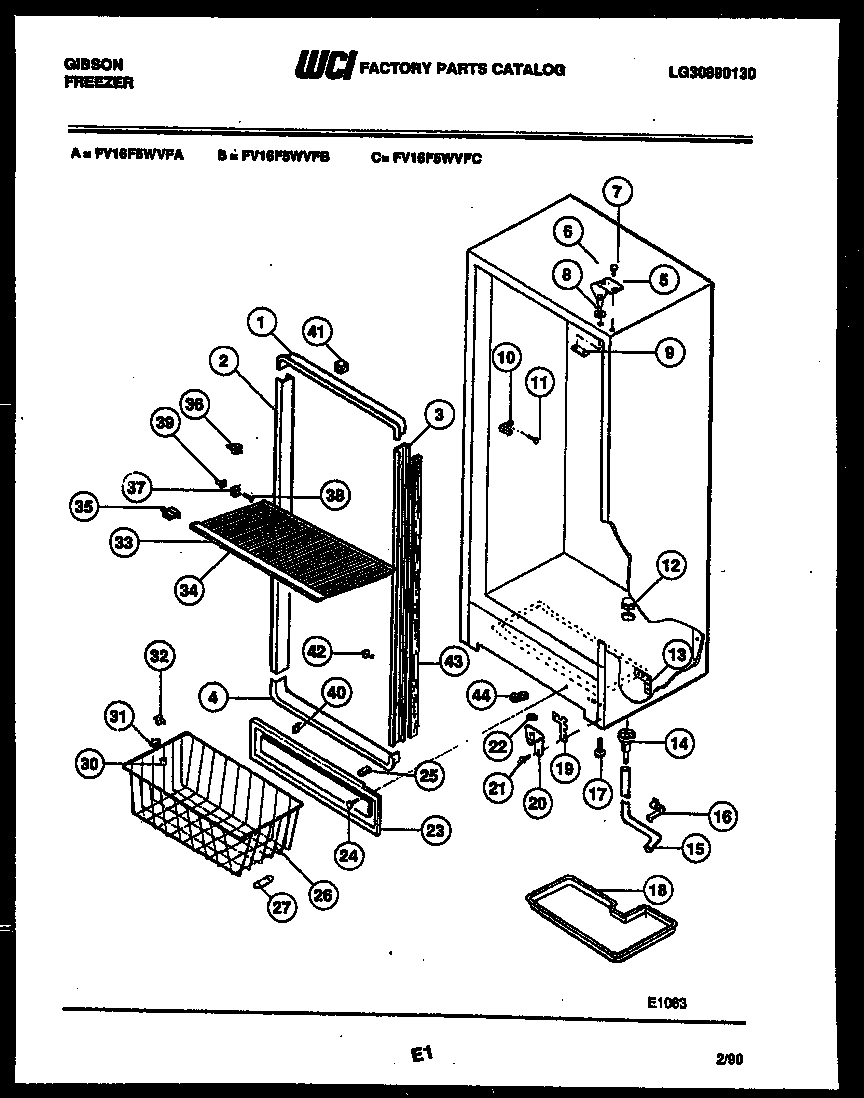

FV16F5WVFA 03 – CABINET PARTS

Products

Position	Product
1	BREAKER, TOP
2	BREAKER-LOCK SIDE
3	BREAKER-HINGE SIDE
4	BREAKER-BOTTOM
5	WCI G190387
6	SCREW-HINGE, REAR
7	SCREW-HINGE-FRONT
8	WCI F84893
9	PLATE-TOP
10	WCI F117634
11	216858001 Frigidaire Refrigerator Screw
12	216503100 Frigidaire Refrigerator Screen-Drain
13	WCI F120978
14	5304511843 Frigidaire Refrigerator Sleeve
15	5304512272 Frigidaire Hose Drain
16	WCI F93775
17	LEVELING LEG (4)
18	DRAIN PAN (NOT ORIGINAL EQUIPMENT--CUSTOMER OPTION ONLY.
19	WCI F84948
20	WCI F84943
21	154518001 Frigidaire Refrigerator Screw
22	BEARING, HINGE (3)
23	WCI 3206066
24	WCI F118001
25	WCI F118003
26	WCI F124618
27	08009560 Frigidaire 0 Basket Glide
30	5305878546 Frigidaire Refrigerator Bumper-Basket
31	WCI F129805
32	BUMPER-BASKET
33	WCI F300042
34	SHELF LOWER
35	WCI F110931
35A	SUPT LH (5)
36	SUPPORT (4)
37	WCI F86224
38	WCI F59837
39	INSERT-NUT (2)
40	CLIP BREAKER (4)
41	SPACER, TOP BREAKER (2)
42	5309918806 Frigidaire Refrigerator Light Switch Door
43	INSULATION
44	DOOR CLOSER
