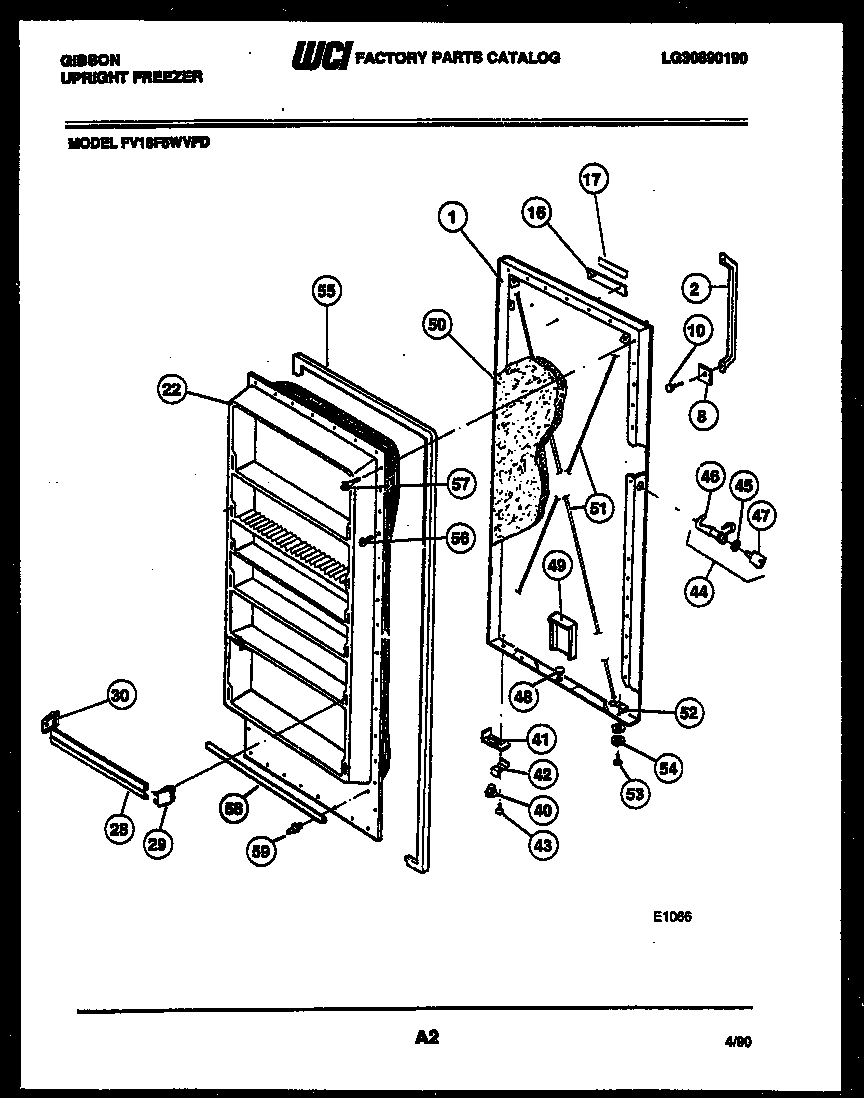

FV16F5WVFD 02 – DOOR PARTS

Products

Position	Product
1	WCI F129300
2	WCI 531635521
8	ANCHOR NUT (2) (NON-ILLUSTRATED)
10	WCI G150543
16	NAMEPLATE
17	WCI F300246
22	WCI F127155-95
23	INSULATION (CUT TO SIZE)
28	WCI F119967
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	WCI 06593882
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206251
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
