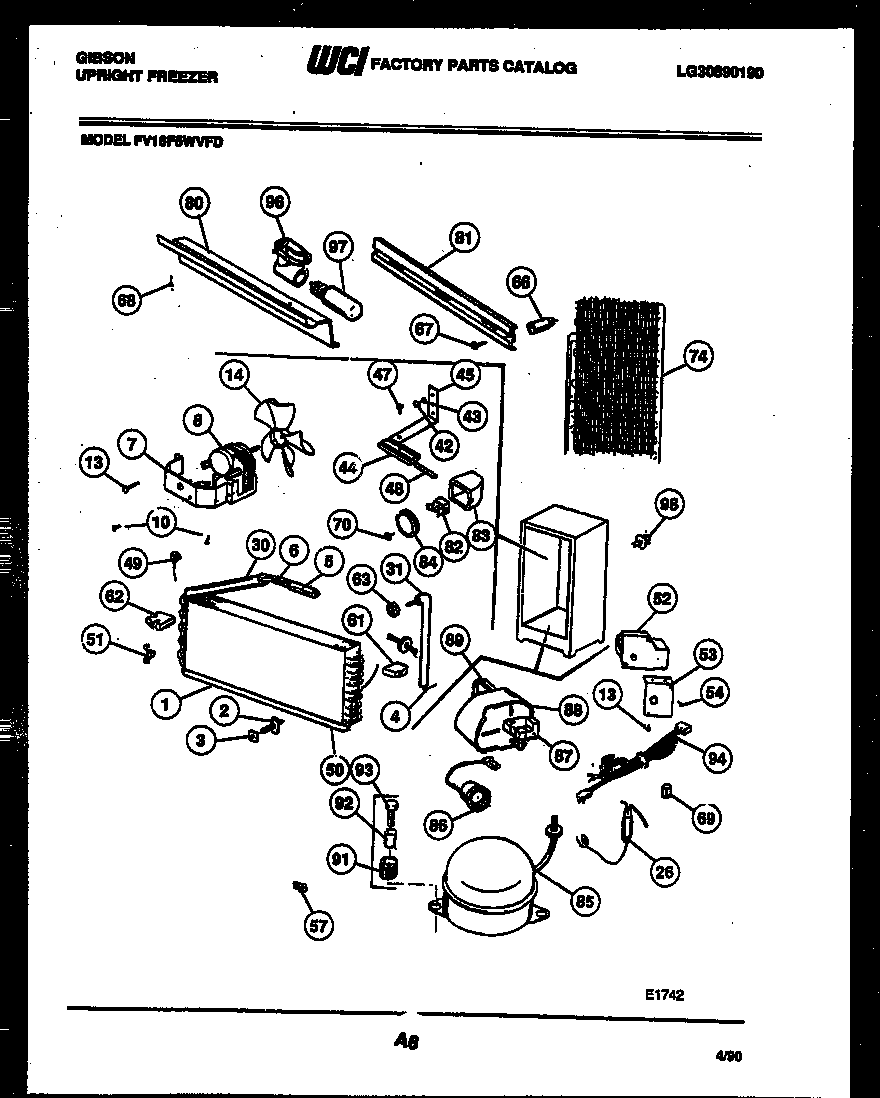

FV16F5WVFD 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

FV16F5WVFD 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FV16F5WVFD 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 3205656
2WCI 06599544
3WCI 08013198
4WCI 3017673
5WCI F96886-1
6SLEEVE-EVAPORATOR TUBING (2)
7WCI 08013207
85304442620 Frigidaire Refrigerator Evaporator Fan Motor
10WCI 08037851
14WCI 3205520
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05878562
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50WCI 5306599535
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
57WCI 05878556
61WCI 06599531
62WCI 3017674
63WCI 06594629
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68SCREW SHIELD
69RETAINER, WIRE, BREAKER
70AWCI 06594651
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
80WCI F128051
81WCI F300248
82CONTROL TEMP
83WCI 5306599543
84KNOB-COLD CONTROL
84AWCI 06599553
85WCI 5303916020
86WCI 3204568
87216594300 Frigidaire Refrigerator Starter
895303006412 Frigidaire Refrigerator Cover Mounting Strap
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93CREW COMPR MTG
94WCI F128933
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
