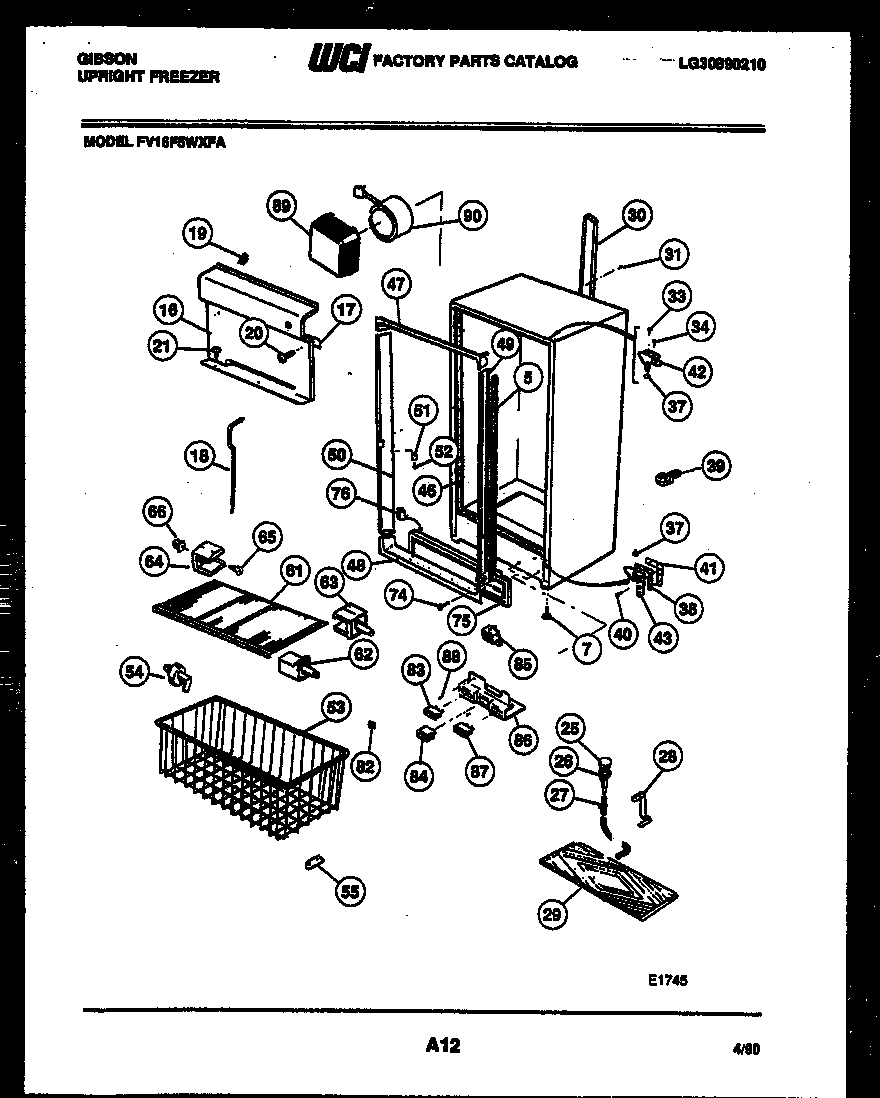

FV16F5WXFA 03 – CABINET PARTS

Products

Position	Product
*29267	WCI F300210
5	INSULATION (CUT TO SIZE)
7	SCREW-LEVELING (4)
16	PANEL-EVAPORATOR
17	WCI 06599547
18	WCI 5306599551
19	WCI 09948978
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
30	WCI F91583-S
31	WCI 06594661
33	WCI 06593898
35	WCI 06593894
36	WCI 08037848
37	WCI 5300057523
37	297006800 Frigidaire Refrigerator Bearing Hinge
38	SPACER
39	WCI F000900253
40	154518001 Frigidaire Refrigerator Screw
41	WCI 06594550
42	WCI 5308037946
43A	SPACER-BREAKER (8)
43	WCI 5306594549
46	WCI 06594680
47	BREAKER-TOP
48	BREAKER-BOTTOM
49	MOULDING-HINGE
50	MOULDING-LOCK
51	WCI 5309949966
52	216858001 Frigidaire Refrigerator Screw
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
55A	WCI F129805
61	WCI 08037963
61	SHELF-LOWER (1)
62	WCI 5306594707
62	WCI 5306594706
63	WCI 5306594584
64	WCI 5306594585
65	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66	WCI 06594537
74	FASTENER BASE PANEL
75	WCI 3206066
76	WCI 5300118003
79	WCI F121216
80	WCI 09950862
82	5305878546 Frigidaire Refrigerator Bumper-Basket
83	WCI 5308002706
84	WCI 5303017178
85	WCI 08016367
86	WCI 08016369
87	WCI 08016772
88	WCI 08037851
89	WCI 3205349
90	WCI 5308037992
