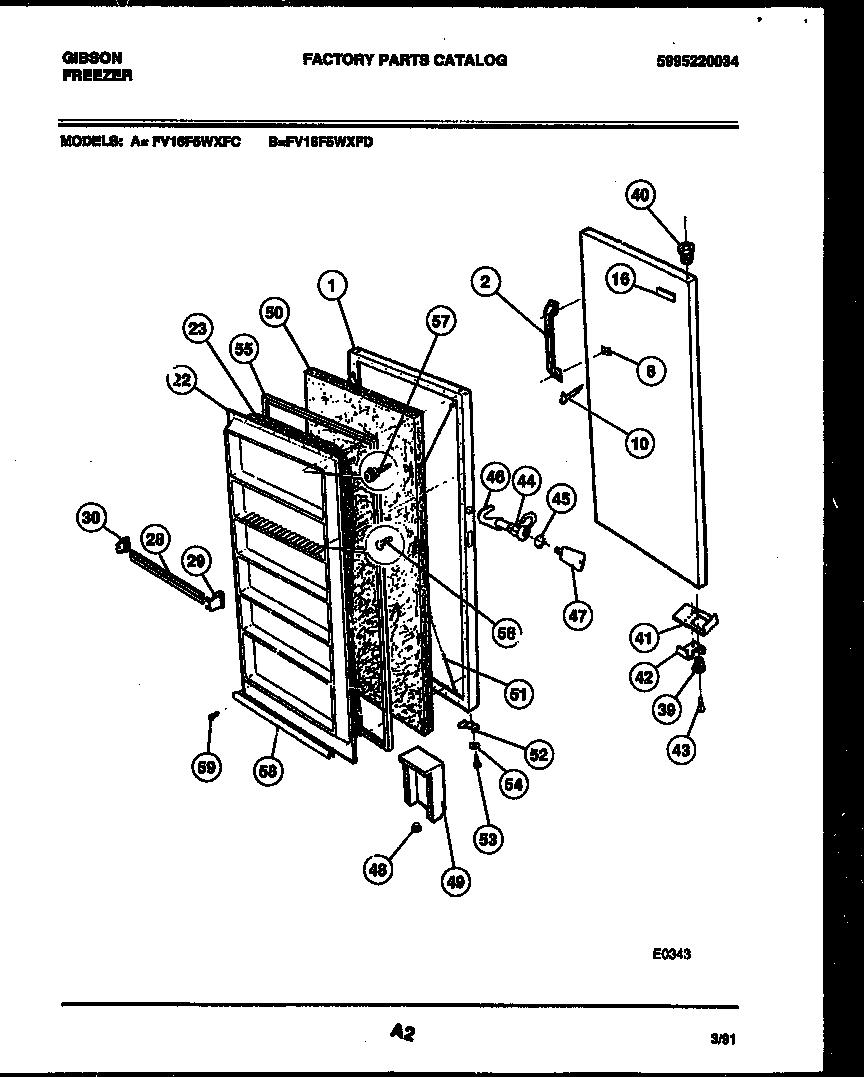

FV16F5WXFD 02 – DOOR PARTS

Products

Position	Product
1	PANEL-DOOR (WHITE)
2	DOOR HANDLE
8	ANCHOR NUT (2) (NON-ILLUSTRATED)
10	WCI 08000022
16	WCI 5303209955
16A	WCI 5300460947
22	WCI 216012902
24	INSULATION (CUT TO SIZE)
28	WCI 3205348
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	297006800 Frigidaire Refrigerator Bearing Hinge
40A	WCI 5306593364
41	WCI 5300091170
42	WCI 06593882
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206251
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	216036601 Frigidaire Refrigerator Screw
59	5303212828 Frigidaire Refrigerator Primary Clip
