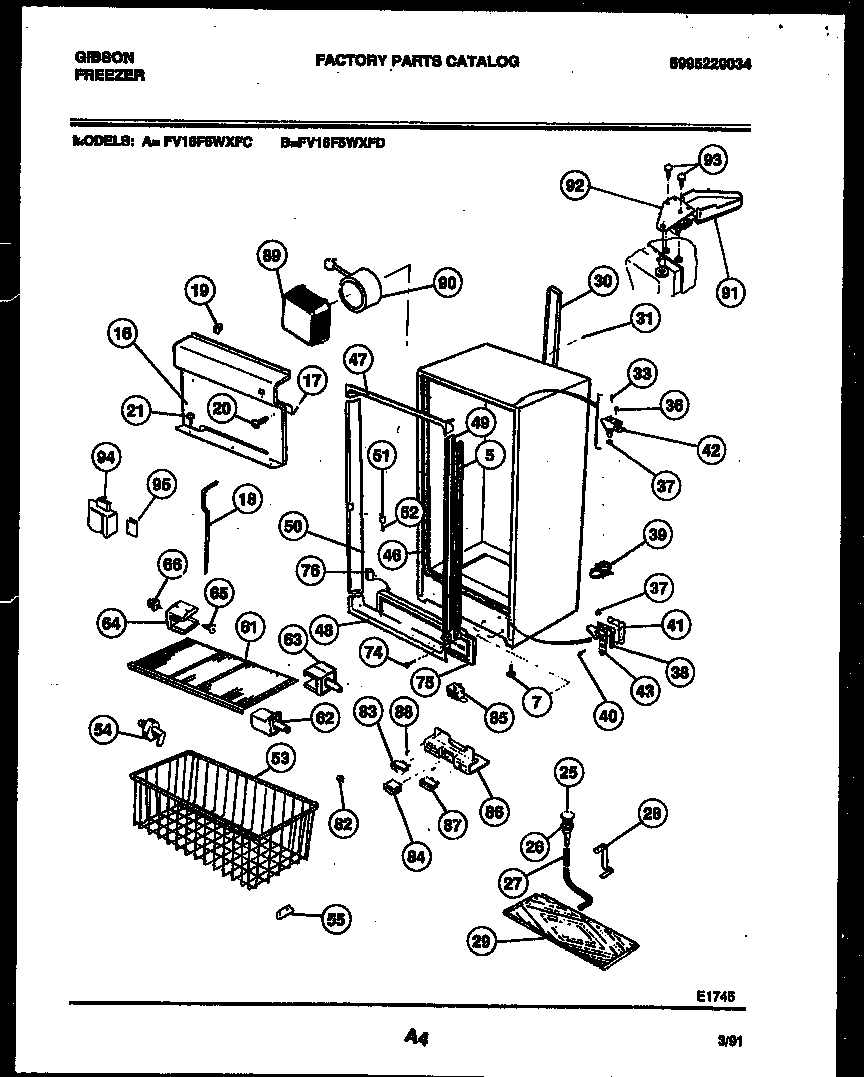

FV16F5WXFD 03 – CABINET PARTSadmin2025-04-26T11:01:42+00:00FV16F5WXFD 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *57852 | WCI F300210 |
| 5A | INSULATION (CUT TO SIZE) |
| 7 | SCREW-LEVELING (4) |
| 16 | PANEL-EVAPORATOR |
| 17 | WCI 06599547 |
| 18 | WCI 5306599551 |
| 19 | INSERT NUT |
| 20 | 216858001 Frigidaire Refrigerator Screw |
| 21 | 131168200 Frigidaire Dryer Screw |
| 25 | 216503100 Frigidaire Refrigerator Screen-Drain |
| 26 | 5304511843 Frigidaire Refrigerator Sleeve |
| 27 | 5304512272 Frigidaire Hose Drain |
| 28 | WCI 06594637 |
| 29 | WCI 5308016387 |
| 30 | WCI F91583-S |
| 37A | WCI 5300057523 |
| 37 | 297006800 Frigidaire Refrigerator Bearing Hinge |
| 38 | SPACER |
| 39 | WCI F000900253 |
| 40 | 154518001 Frigidaire Refrigerator Screw |
| 41 | WCI 06594550 |
| 43A | SPACER-BREAKER (8) |
| 43 | WCI 5306594549 |
| 46 | WCI 06594680 |
| 47 | BREAKER-TOP |
| 48 | BREAKER-BOTTOM |
| 49 | BREAKER-HINGE SIDE |
| 50 | WCI 216014200 |
| 53 | 5304497658 Frigidaire Refrigerator Basket |
| 54 | WCI 09948791 |
| 55A | WCI F129805 |
| 55 | 08009560 Frigidaire 0 Basket Glide |
| 61A | SHELF-LOWER (1) |
| 61 | WCI 08037963 |
| 62 | WCI 5306594706 |
| 62A | WCI 5306594707 |
| 63 | WCI 5306594584 |
| 64 | WCI 5306594585 |
| 65 | Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric |
| 66 | WCI 06594537 |
| 74 | FASTENER BASE PANEL |
| 75 | WCI 5303209963 |
| 76 | WCI 5300118003 |
| 79 | TRIM-BASKET, WIDE, FRONT |
| 80 | WCI 09950862 |
| 82 | 5305878546 Frigidaire Refrigerator Bumper-Basket |
| 83 | WCI 5308002706 |
| 84 | WCI 5303017178 |
| 85 | WCI 08016367 |
| 86 | WCI 08016369 |
| 87 | WCI 08016772 |
| 88 | WCI 08037851 |
| 89 | WCI 3205349 |
| 90 | WCI 5308037992 |
| 91 | COVER, HINGE |
| 92 | HINGE, TOP |
| 93 | WCI 5303212937 |
| 94 | WCI 216013600 |
| 95 | CLIP, U, LOCK |
