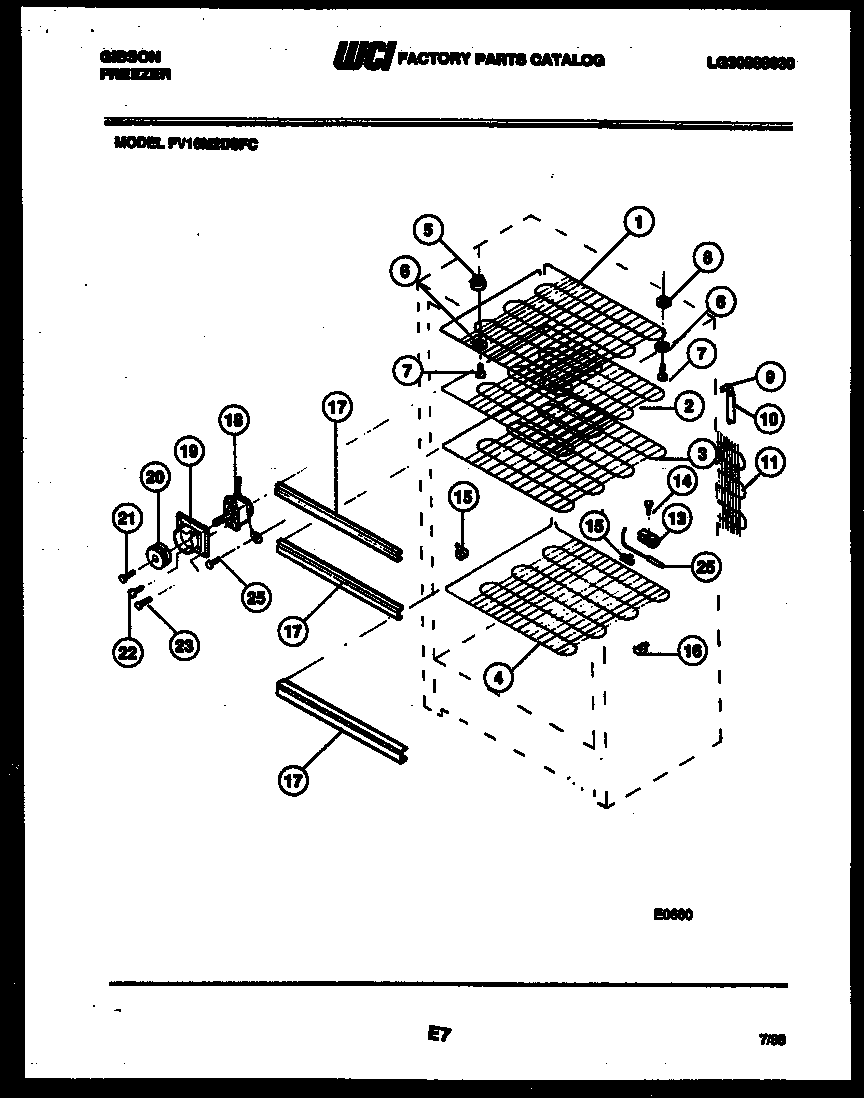

FV16M2DSFC 04 – SHELVES AND SUPPORTS

FV16M2DSFC 04 – SHELVES AND SUPPORTS

Written by

in

FV16M2DSFC 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI F121179
2WCI F129785
3WCI F129786
4WCI F129807
5SPCR-TOPGRID FRONT (2)
6WASHER (3)
7WCI F126260
8SPCR-TOP GRID REAR (NON-ILLUSTRATED)
9WCI F125249
10WCI F58148-50
115300123788 Frigidaire Refrigerator Condenser
12WCI F117447
13WCI F96850
14SCREW-CLAMP
15297001500 Frigidaire Shelf Support
16297001600 Frigidaire Shelf Support
17SHELF TRIM (3)
18WCI F126974
19WCI F128633
20KNOB, COLD CONTROL
21SCREW KNOB
22131420300 Frigidaire Screw
23SCREW CONTROL
24216036601 Frigidaire Refrigerator Screw
25TUBE
