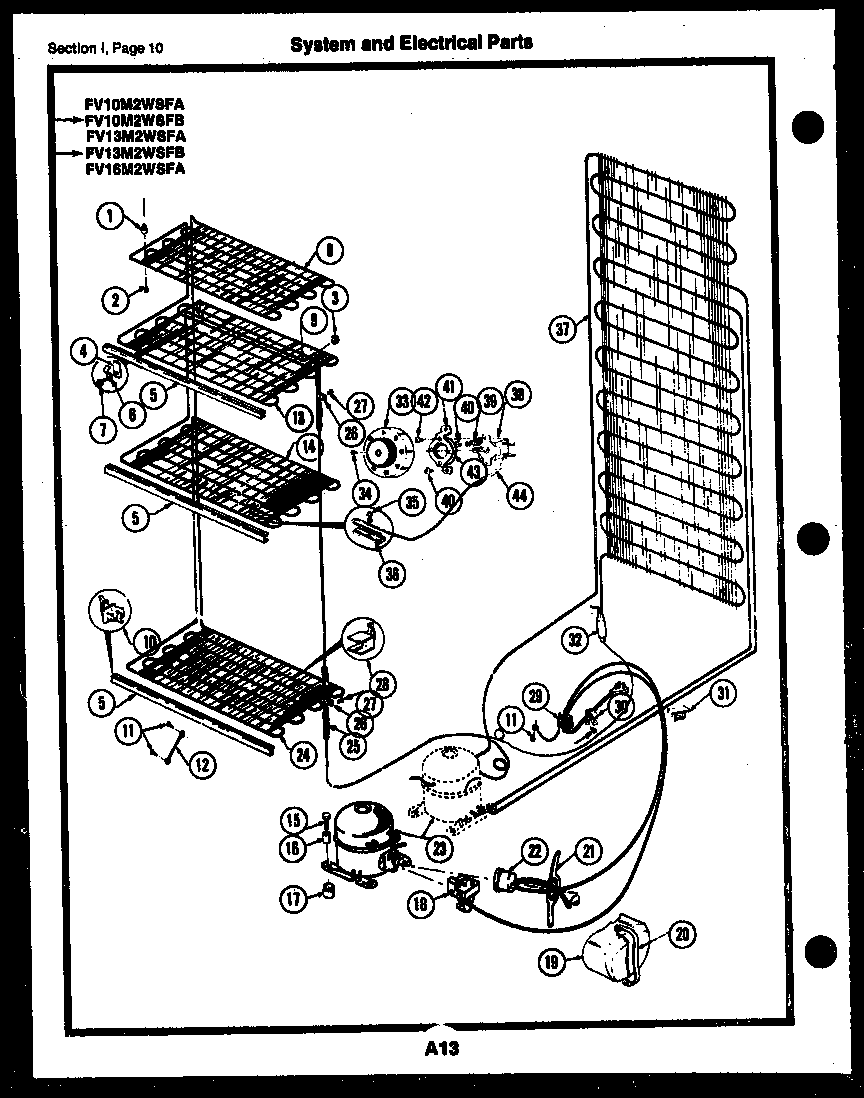

FV16M2WSFB 05 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
*07728	WCI G186042
1	SPCR-TOPGRID FRONT (2)
1	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
2	WCI F115299
3	WCI F86523
4	WASHER (3)
5	SHELF TRIM (3)
5	SHELF TRIM
6	WCI F50732
7	WCI F57966
8	WCI F122960
8	WCI F121174
8	WCI F121179
9	WCI F125274
9	WCI F121481
10	297001600 Frigidaire Shelf Support
10	SUPT FRONT RH (3)
11	SCREW (5)
12	WCI F95424
13	WCI F121175
13	FIRST SHELF
13	FIRST SHELF
14	WCI F125272
14	SECOND SHELF
14	WCI F125270
15	WCI F59211
16	SLEEVE
17	216498900 Frigidaire Refrigerator Grommet
18	RELAY (NON-ILLUSTRATED)
18	WCI F117106
18	WCI F127795
18	RELAY (NON-ILLUSTRATED)
19	WCI F127580
20	CLAMP COVER
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	CLIP
21	WCI F127579
22	WCI F118186
22	WCI F127582
22	WCI F117103
22	OVERLOAD (NON-ILLUSTRATED)
23	WCI F127800
23	WCI F118188
23	COMPRESSOR
23	WCI F126803
24	BOTTOM SHELF
24	BOTTOM SHELF
24	WCI F121177
25	WCI F58148-52
26	WCI F58105
27	216858001 Frigidaire Refrigerator Screw
28	WCI F117447
29	WCI F124128
29	WCI F123894
30	5304455846 Frigidaire Refrigerator Clamp
31	RETAINER LEAD WIRE
31	CLIP
32	5303305677 Frigidaire Replacement Filter Dryer Filters
33	WCI F120876
33	WCI F127806
33	WCI F120058-1
34	SCREW KNOB
35	SCREW-CLAMP
36	WCI F96850
37	5300123788 Frigidaire Refrigerator Condenser
37	WCI F124042
38	COLD CONTROL
39	WCI F99482-2
40	216036601 Frigidaire Refrigerator Screw
41	BRKT
42	SCREW CONTROL
43	SHIELD, COLD CONTROL
44	TUBE
