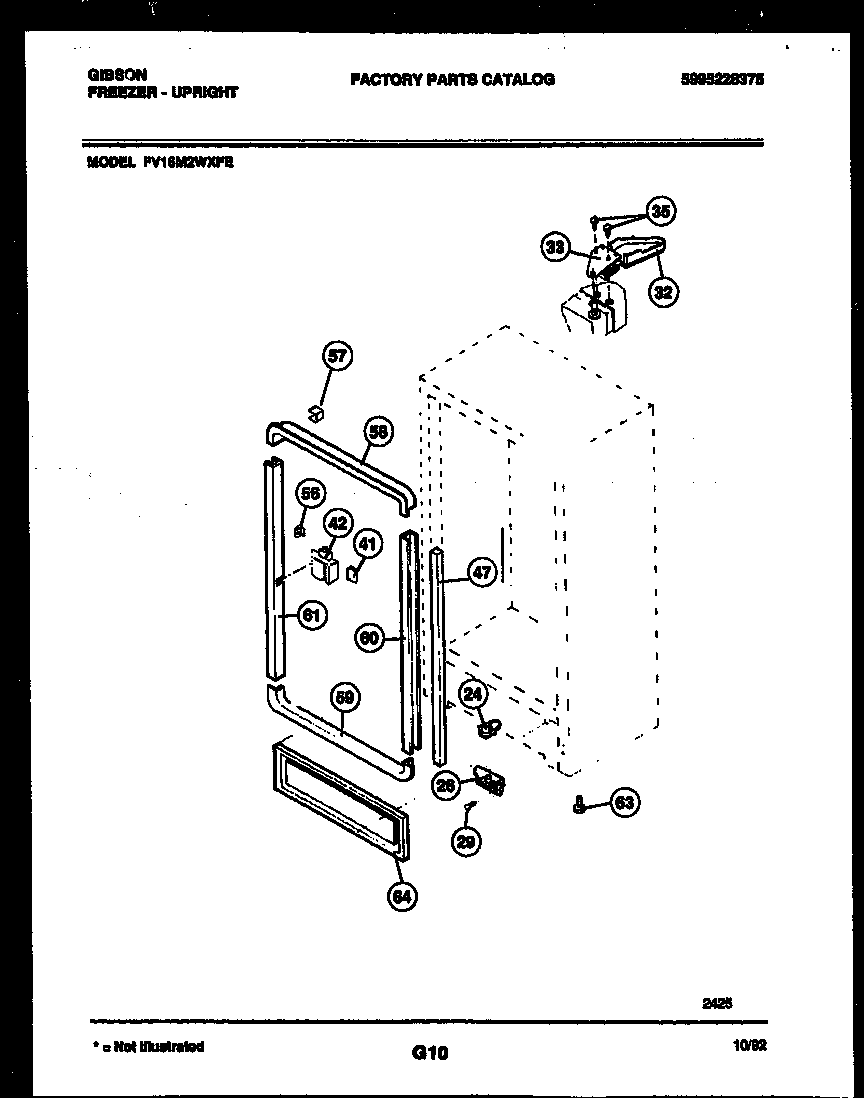

FV16M2WXFE 03 – CABINET PARTS

Written by

Products

Position	Product
24	RAMP, DOOR
26	WCI 5303210383
29	154518001 Frigidaire Refrigerator Screw
32	COVER, HINGE
33	HINGE, TOP
35	SCREW
35	WCI 5303212937
41	CLIP, U, LOCK
42	WCI 216013600
47	INSULATION (CUT TO SIZE)
56	WCI 06594680
57	SPACER-BREAKER (8)
58	WCI 5308005501
59	WCI 5308005502
60	WCI 08009388
61	WCI 216014100
63	SCREW-LEVELING (4)
