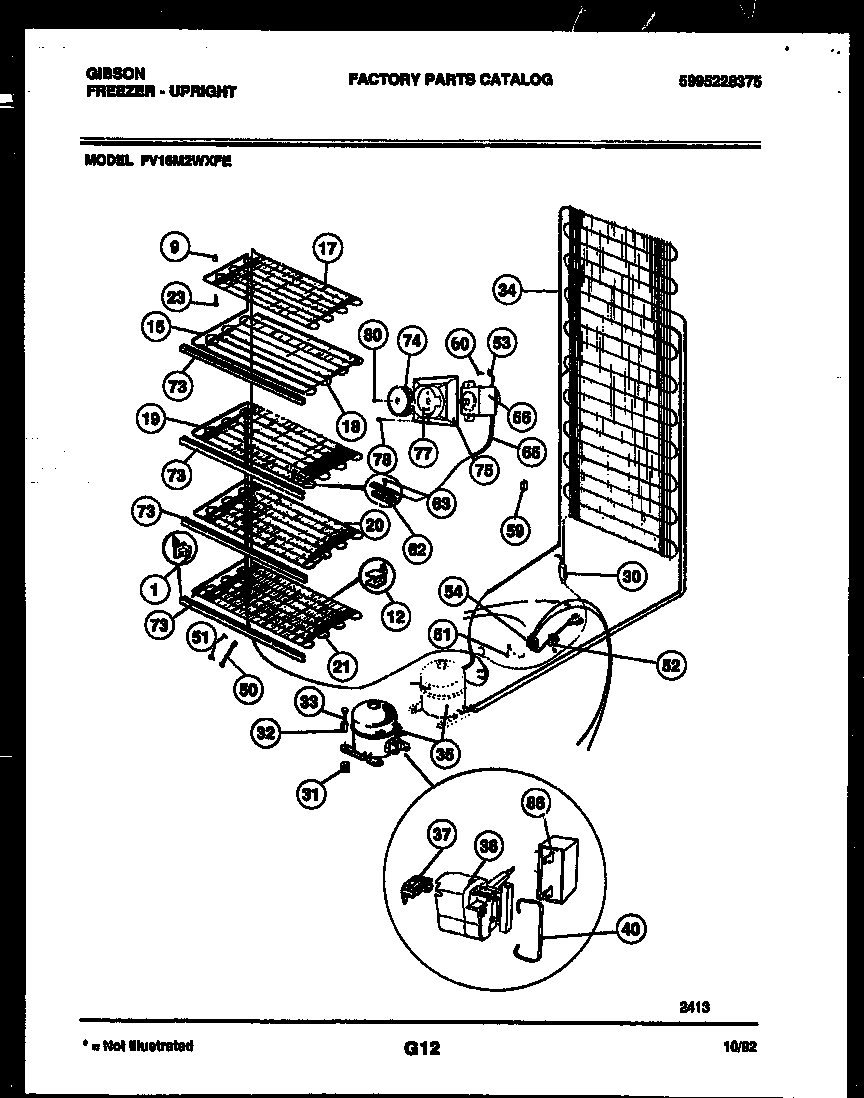

FV16M2WXFE 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1A	297001600 Frigidaire Shelf Support
1	297001500 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
9A	SPACER-REAR
12	WCI 09949960
15	WCI 08010753
17	WCI 5300121179
18	WCI 08037939
19	SECOND SHELF
21	BOTTOM SHELF
23	SCREW
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	CREW COMPR MTG
34	5300123788 Frigidaire Refrigerator Condenser
35	WCI 5303917190
36	WCI 216008900
37	WCI 5308037789
40	WCI 215012000
50	WCI 06594651
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WCI 216088600
56	WCI 216023000
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
73	WCI 216045701
74	WCI 216008602
75	HOUSING
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	WCI 09950853
86	CAPACITOR
