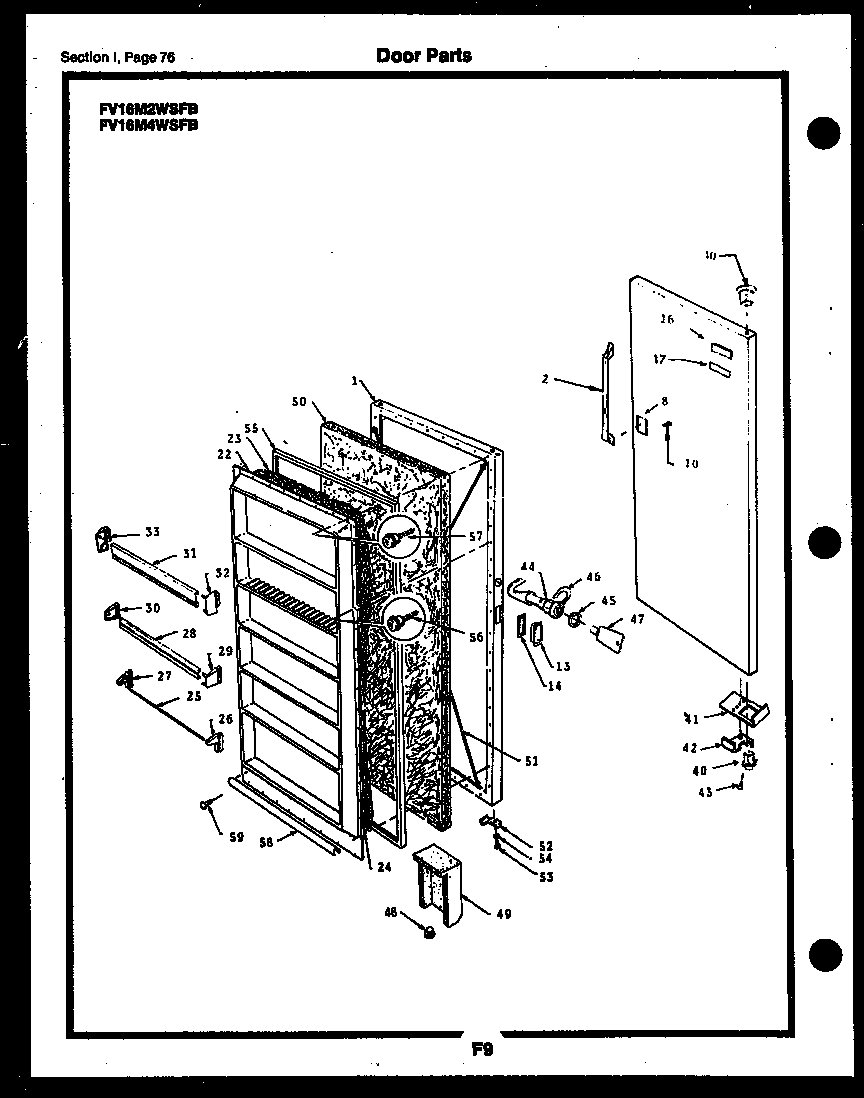

FV16M4WSFB 28 – DOOR PARTS

Products

PositionProduct
1WCI F129293
2WCI F120973
8PLATE, REINFORCE. (2)
10SCREW (4)
16WCI F128767
17WCI F128760
17ATAPE NAMEPLATE (NON-ILLUSTRATED)
22WCI F124566-95
23INSULATION, DIKES
28WCI F91564-23
295303925377 Frigidaire Refrigerator Endcap Kit R & L
40297006800 Frigidaire Refrigerator Bearing Hinge
40AWCI F84893
41BRACKET-DOOR STOP
42STO DOOR
43SCREW-STOP
44WCI F128816
45WASHER
47297147700 Frigidaire Freezer Plastic Door Key
49AIR DUCT BREATHER
50WCI F116277
51WIRE ADJUSTING (2)
52WCI F57880
53SCREW, BRACKET (2)
54WASHER BRACKET (2)
55GASKET DOOR
56216858001 Frigidaire Refrigerator Screw
57SCREW-PANEL
58WCI F99439
595303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
