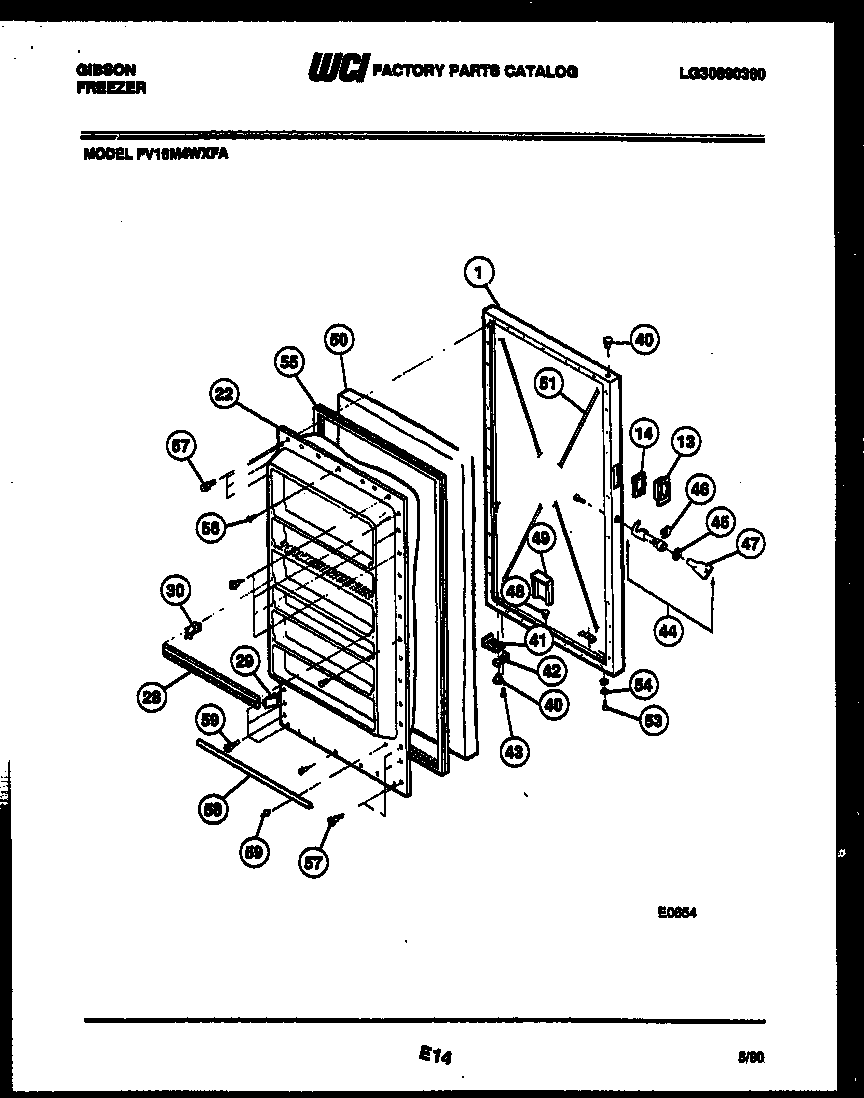

FV16M4WXFA 02 – DOOR PARTS

Products

Position	Product
1	WCI F128673
13	WCI 5300112637
14	GASKET, WHITE
16	WCI 5303209948
22	WCI F124566-64
23	INSULATION (CUT TO SIZE)
28	FRONT-NARROW (5)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	GASKET-DOOR
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
