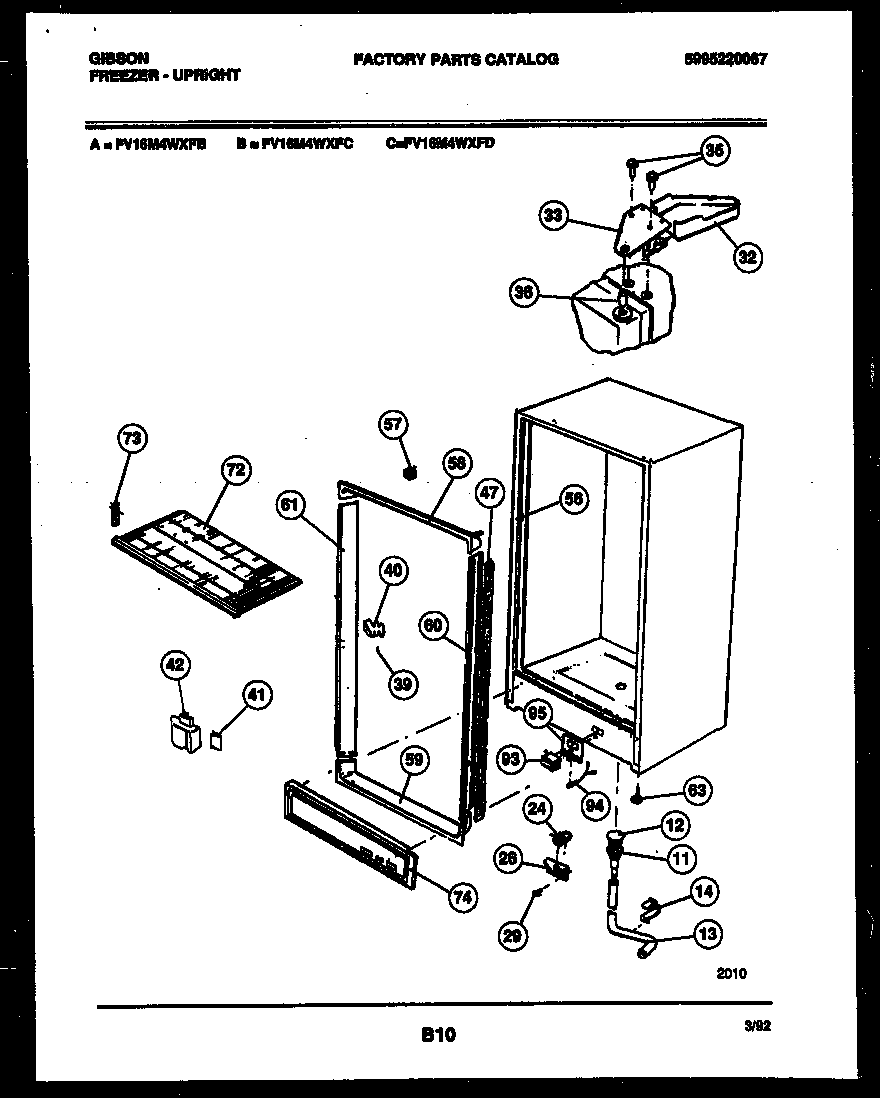

FV16M4WXFD 03 – CABINET PARTS

Products

Position	Product
1	5304511843 Frigidaire Refrigerator Sleeve
12	PLUG, DRAIN, LINER
13	5304512272 Frigidaire Hose Drain
14	WCI 06593405
24	RAMP, DOOR
26	WCI 5303210383
29	154518001 Frigidaire Refrigerator Screw
32	COVER, HINGE
33	HINGE, TOP
35	WCI 5303212937
39	216858001 Frigidaire Refrigerator Screw
41	CLIP, U, LOCK
42	WCI 216013600
47	INSULATION (CUT TO SIZE)
56	WCI 06594680
57	SPACER-BREAKER (8)
58	WCI 5308005501
59	WCI 5308005502
60	WCI F121458-64
61	WCI 216014100
63	SCREW-LEVELING (4)
72	WCI 5300121320
73	SUPPORT SHELF,ADJUSTABLE
93	WCI 5303210722
94	WCI 3200895
95	WCI 5303210723
