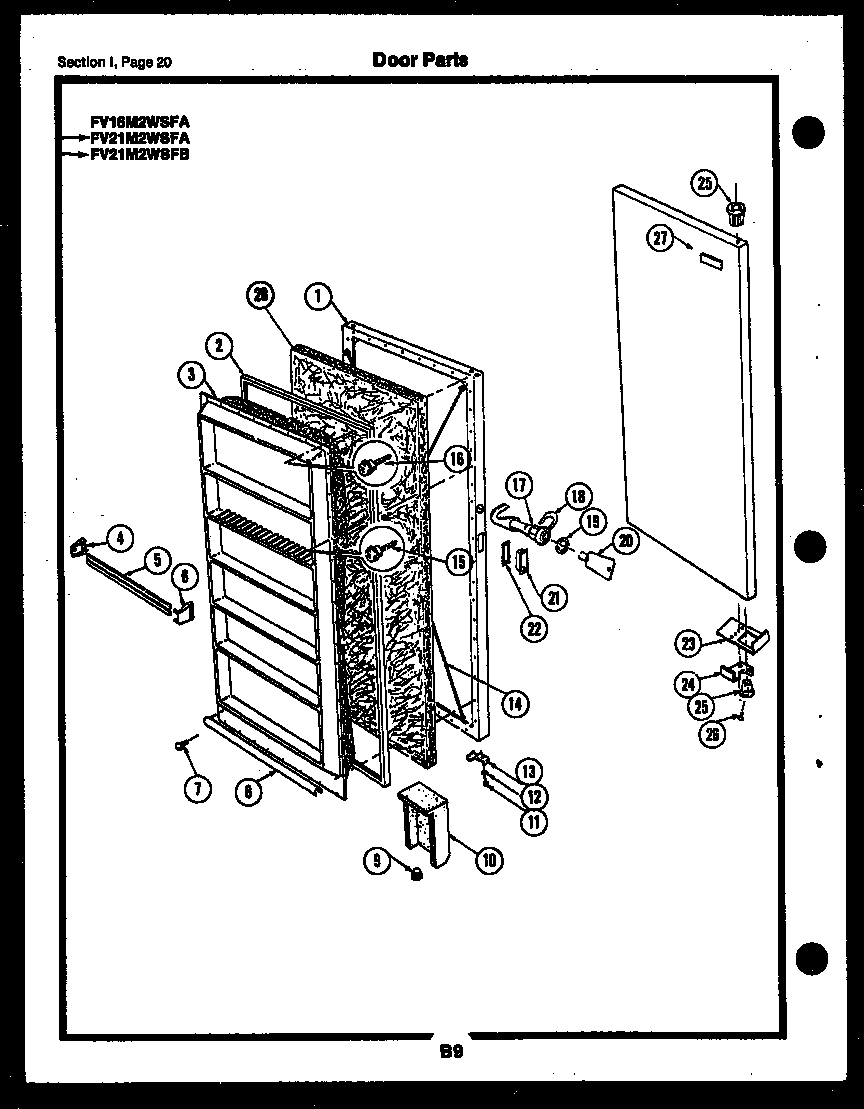

FV16M5WSFA 08 – DOOR PARTS

Products

Position	Product
1	WCI F117971-64
1	WCI F122752-64
2	GASKET DOOR
3	WCI F124566-95
3	WCI F124705-95
4	WCI F112629 (5)
4	WCI F126017 (6)
5	WCI F91564-23 (5)
5	WCI F91564-33 (6)
6	WCI F112628 (5)
6	WCI F126016 (6)
7	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
8	WCI F99438
8	WCI F99439
10	AIR DUCT BREATHER
11	SCREW, BRACKET (2)
12	WASHER BRACKET (2)
13	WCI F57880
14	WCI F57688-24
14	WIRE ADJUSTING (2)
15	216858001 Frigidaire Refrigerator Screw
16	SCREW-PANEL
17	LOCK COMPRESSOR
18	CLIP, LOCK
19	WASHER
20	297147700 Frigidaire Freezer Plastic Door Key
21	HANDLE RECESSED
22	WCI F112639
23	BRACKET-DOOR STOP
24	STO DOOR
25	WCI F84893
25	297006800 Frigidaire Refrigerator Bearing Hinge
26	SCREW-STOP
27	WCI G114972-1
27	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
27	WCI F120868
28	WCI F116277
