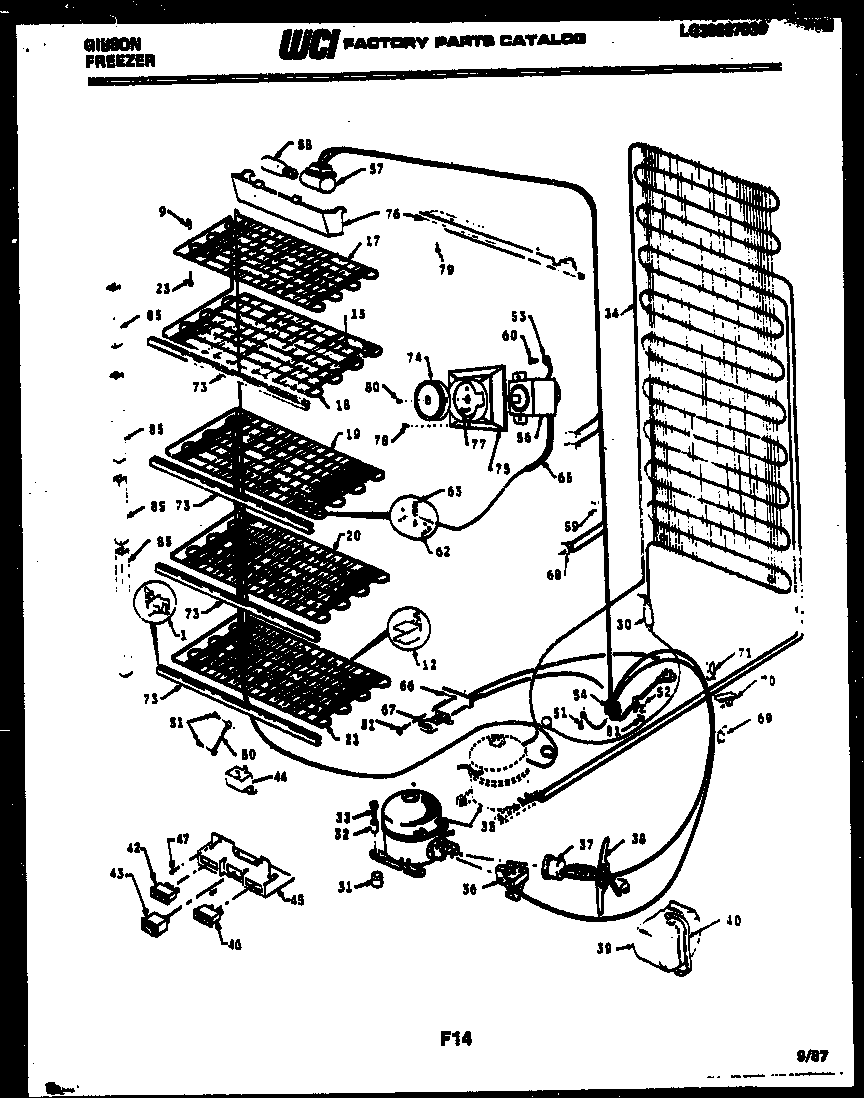

FV16M6WTFC 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	297001500 Frigidaire Shelf Support
1A	297001600 Frigidaire Shelf Support
9A	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
9	SPCR-TOPGRID FRONT (2)
12	WCI F117447
15	WCI F125249
17	WCI F121179
18	FIRST SHELF
19	WCI F125251
21	BOTTOM SHELF
23	WCI F126260
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE
33	WCI F59211
34	5300123788 Frigidaire Refrigerator Condenser
35	WCI F127169
36	WCI F127165
37	WCI F127166
38	WCI F300749
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	WCI F128520
43	WCI F128517
44	WCI F128518
45	WCI F129965
46	WCI F128519
46A	WCI F300210
47	SCREW (5)
50	WCI F95424
52	5304455846 Frigidaire Refrigerator Clamp
53	WCI F125347
54	WCI F128913
56	WCI F126974
57	SOCKET
58	WCI F92472
59	WCI F112321
60	216036601 Frigidaire Refrigerator Screw
61	CAP. CLIP (2)
62	WCI F96850
63	SCREW-CLAMP
65	TUBE
68	5309918806 Frigidaire Refrigerator Light Switch Door
70	CLIP
73	SHELF TRIM (3)
74	WCI F129271
75	WCI F128633
77	SCREW CONTROL
78	131420300 Frigidaire Screw
80	SCREW KNOB
81	216858001 Frigidaire Refrigerator Screw
85	WCI F126171-2
85	TUBE CVR FOURTH
85	TUBE CVR THIRD
85	WCI F126171-3
