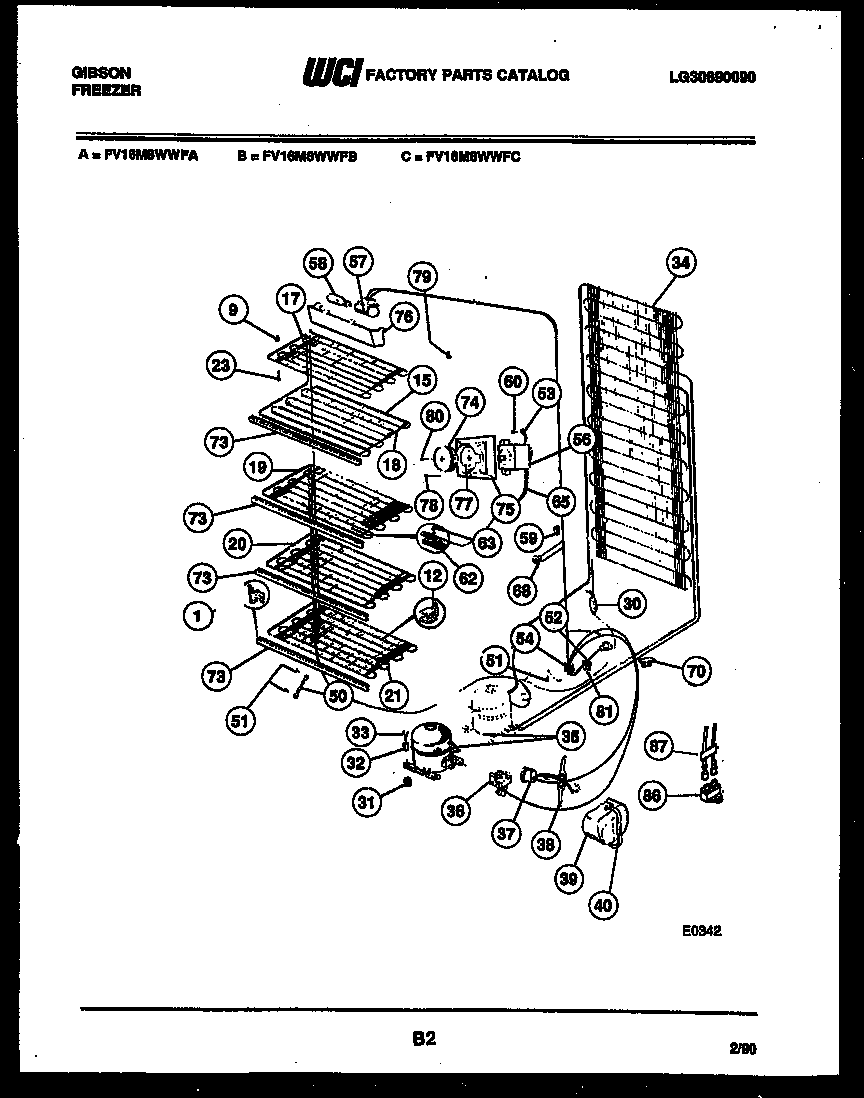

FV16M8WWFA 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1A	297001600 Frigidaire Shelf Support
1	297001500 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
9A	SPACER-REAR
12	WCI F117447
15	WCI F125249
17	WCI F121179
18	WCI F129785
19	WCI F129786
21	WCI F129807
23	WCI F126260
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	CREW COMPR MTG
34	5300123788 Frigidaire Refrigerator Condenser
35	WCI 5303916020
36	WCI 5303017753
36	WCI 5303007171
36	216594300 Frigidaire Refrigerator Starter
37	WCI 5308037789
37	WCI 3204568
37	WCI 5303007416
38	WCI F300749
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
50	WCI 06594651
52	5304455846 Frigidaire Refrigerator Clamp
53	SCREW-CLAMP
53	WCI F125347
54	WCI F000128540
56	WCI F126974
57	SOCKET
58	5304517886 Frigidaire Refrigerator Light
59	WCI F112321
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
65	TUBE
68	5309918806 Frigidaire Refrigerator Light Switch Door
70	CLIP
73	SHELF TRIM (3)
74	KNOB
75	HOUSING
76	WCI F128374
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	SCREW KNOB
81	216858001 Frigidaire Refrigerator Screw
86	CAPACITOR
87	WCI 5303091425
