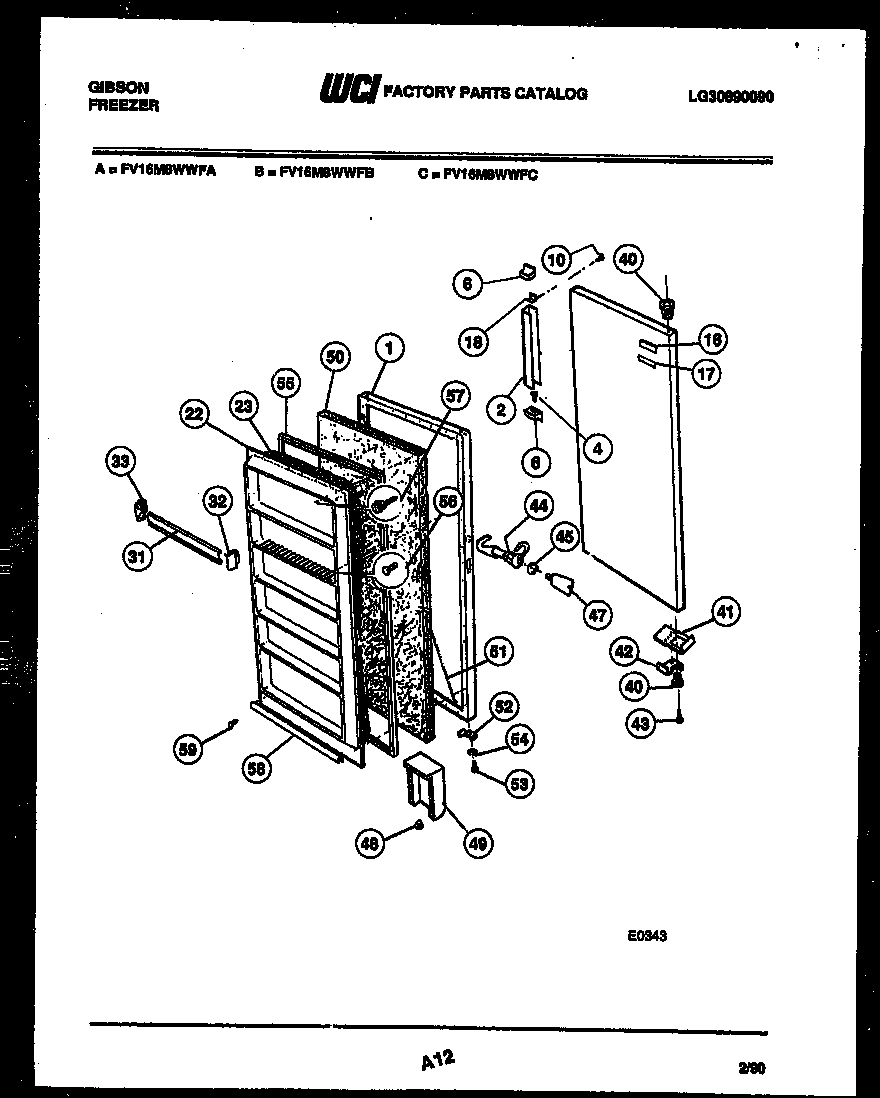

FV16M8WWFB 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303208917
2	WCI F124920
4	WCI F00001236
6	WCI F124647
6A	END CAP, BOTTOM
10	131168200 Frigidaire Dryer Screw
16	BEZEL, NAMEPLATE
17	WCI F300275
18	RETAINER
22	WCI F124566-95
23	INSULATION (CUT TO SIZE)
31	WCI 5303208919
32	WCI F124984
33	WCI F124986
40A	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI 5300190358
45	WASHER
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116277
51	WIRE ADJUSTING
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F129795
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
