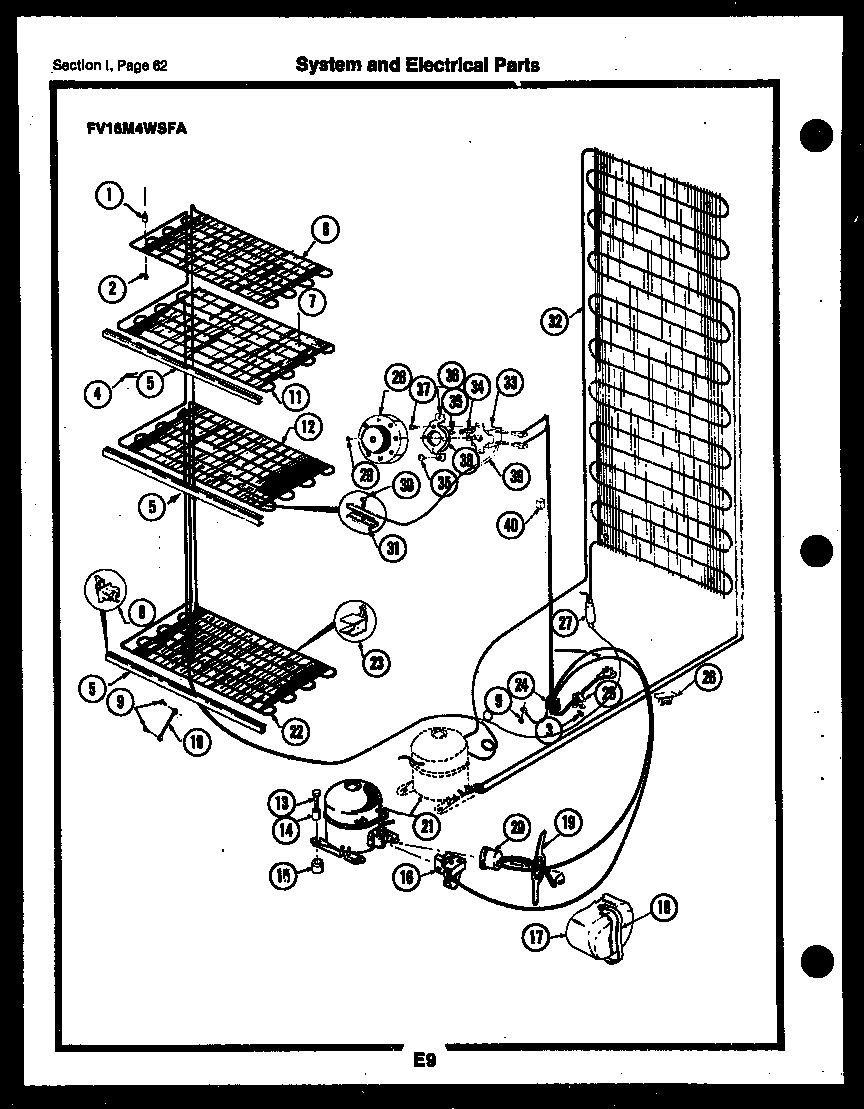

FV16M9WSFA 21 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
*12348	WCI G153376
1	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
1	SPCR-TOPGRID FRONT (2)
2	WCI F126260
3	216858001 Frigidaire Refrigerator Screw
4	CAP. CLIP (2)
5	SHELF TRIM (3)
6	WCI F121179
7	WCI F125249
8	SUPT FRONT RH (3)
8	297001600 Frigidaire Shelf Support
10	WCI F95424
11	FIRST SHELF
12	WCI F125251
13	WCI F59211
14	SLEEVE
15	216498900 Frigidaire Refrigerator Grommet
16	RELAY (NON-ILLUSTRATED)
18	5303006412 Frigidaire Refrigerator Cover Mounting Strap
19	CLIP
20	WCI F118186
21	WCI F118188
22	BOTTOM SHELF
23	WCI F117447
24	WCI F126427
25	5304455846 Frigidaire Refrigerator Clamp
26	CLIP
27	5303305677 Frigidaire Replacement Filter Dryer Filters
28	WCI F120058-1
29	SCREW KNOB
30	SCREW-CLAMP
31	WCI F96850
32	5300123788 Frigidaire Refrigerator Condenser
33	WCI F120061
34	WCI F125347
35	216036601 Frigidaire Refrigerator Screw
36	BRKT
37	SCREW CONTROL
38	SHIELD, COLD CONTROL
39	TUBE
40	WCI F112321
