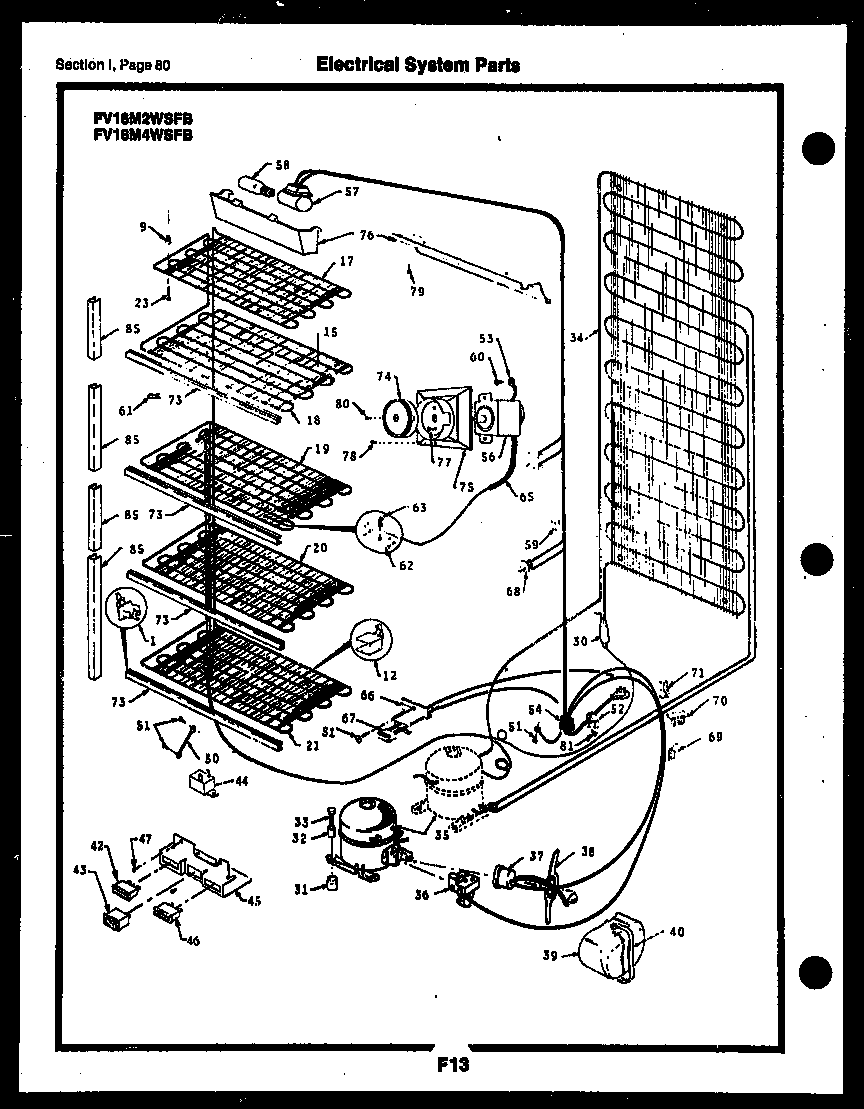

FV16M9WSFB 30 – ELECTRICAL SYSTEM PARTS

Products

Position	Product
1	297001600 Frigidaire Shelf Support
1	SUPT FRONT RH (3)
9	SPCR-TOPGRID FRONT (2)
9	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
12	WCI F117447
15	WCI F125249
17	WCI F121179
18	FIRST SHELF
19	WCI F125251
21	BOTTOM SHELF
23	WCI F126260
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE
33	WCI F59211
34	5300123788 Frigidaire Refrigerator Condenser
35	COMPRESSOR (NON-ILLUSTRATED)
36	RELAY
37	WCI F126879
38	CLIP
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
50	WCI F95424
52	5304455846 Frigidaire Refrigerator Clamp
53	WCI F125347
54	WCI F128543
56	WCI F113633
59	WCI F112321
60	216036601 Frigidaire Refrigerator Screw
61	CAP. CLIP (2)
62	WCI F96850
63	SCREW-CLAMP
65	TUBE
70	CLIP
73	SHELF TRIM (3)
74	KNOB, COLD CONTROL
75	WCI F128633
77	SCREW CONTROL
78	131420300 Frigidaire Screw
80	SCREW KNOB
81	216858001 Frigidaire Refrigerator Screw
