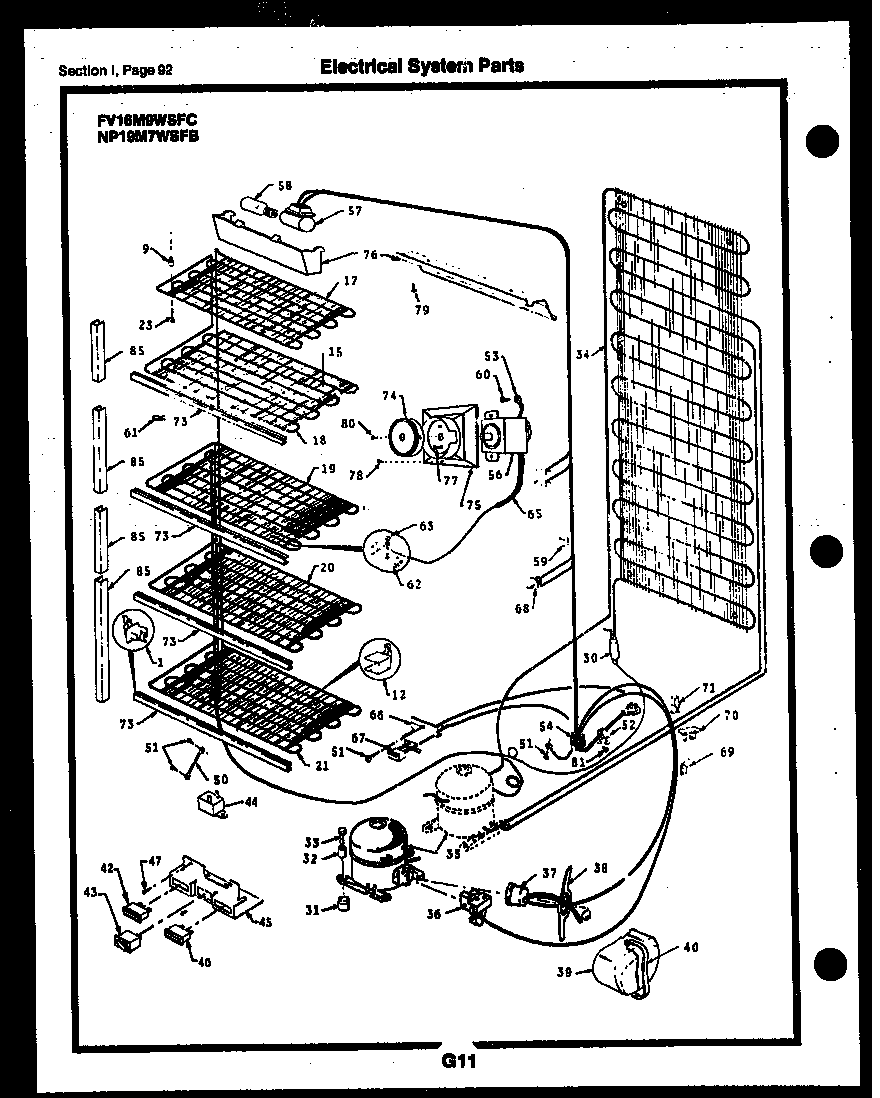

FV16M9WSFB 36 – ELECTRICAL SYSTEM PARTS

Products

Position	Product
1	SUPT FRONT RH (3)
1	297001600 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
9	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
12	WCI F117447
15	WCI F125249
17	WCI F119996-3
17	WCI F121179
18	WCI F116209-3
18	FIRST SHELF
19	SECOND SHELF
19	WCI F125251
21	BOTTOM SHELF
21	WCI F116211-3
23	WCI F126260
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE
33	WCI F59211
34	5300123788 Frigidaire Refrigerator Condenser
34	CONDENSER (NOT ORIGINAL EQUIPMENT. SERVICE REPLACEMENT
35	COMPRESSOR (NON-ILLUSTRATED)
36	RELAY
37	WCI F126879
38	CLIP
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
50	WCI F95424
52	5304455846 Frigidaire Refrigerator Clamp
53	WCI F125347
54	WCI F128540
54	WCI F128544
56	WCI F113633
57	SOCKET
58	WCI F92472
59	WCI F112321
60	216036601 Frigidaire Refrigerator Screw
61	CAP. CLIP (2)
62	WCI F96850
63	SCREW-CLAMP
65	TUBE
66	WCI F116294
67	WCI F126159
68	5303289051 Frigidaire Refrigerator Light Switch
70	CLIP
73	SHELF TRIM (3)
73	WCI F119270-3
74	KNOB COLD CONTROL
74	WCI F129269
75	WCI F128633
76	WCI F128375
76	WCI F128372
77	SCREW CONTROL
78	131420300 Frigidaire Screw
80	SCREW KNOB
81	216858001 Frigidaire Refrigerator Screw
85	WCI F126171-6
85	WCI F126171-2
85	WCI F117243-8
85	WCI F117243-7
85	WCI F117243-3
85	WCI F126171-3
