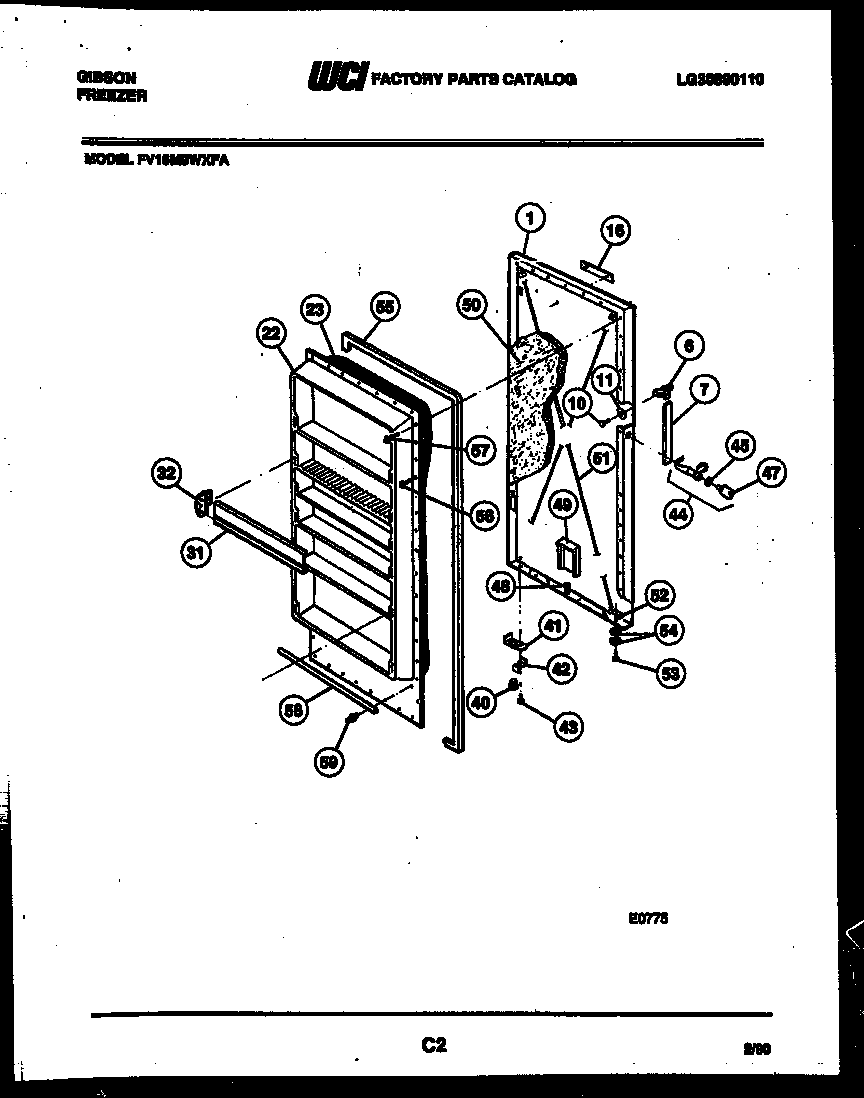

FV16M9WXFA 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303208941
6	END CAP-HANDLE
7	HANDLE, CENTER
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	WCI 5303208943
16A	WCI 5303208944
22	WCI F124566-64
23	INSULATION (CUT TO SIZE)
31	WCI 5303208946
31	WCI 5303208945
32A	WCI 09948971
32	WCI 5309948970
40	297006800 Frigidaire Refrigerator Bearing Hinge
40A	WCI 5306593364
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI 5300190358
45	WASHER
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE ADJUSTING
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F129795
57	SCREW-PANEL
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
