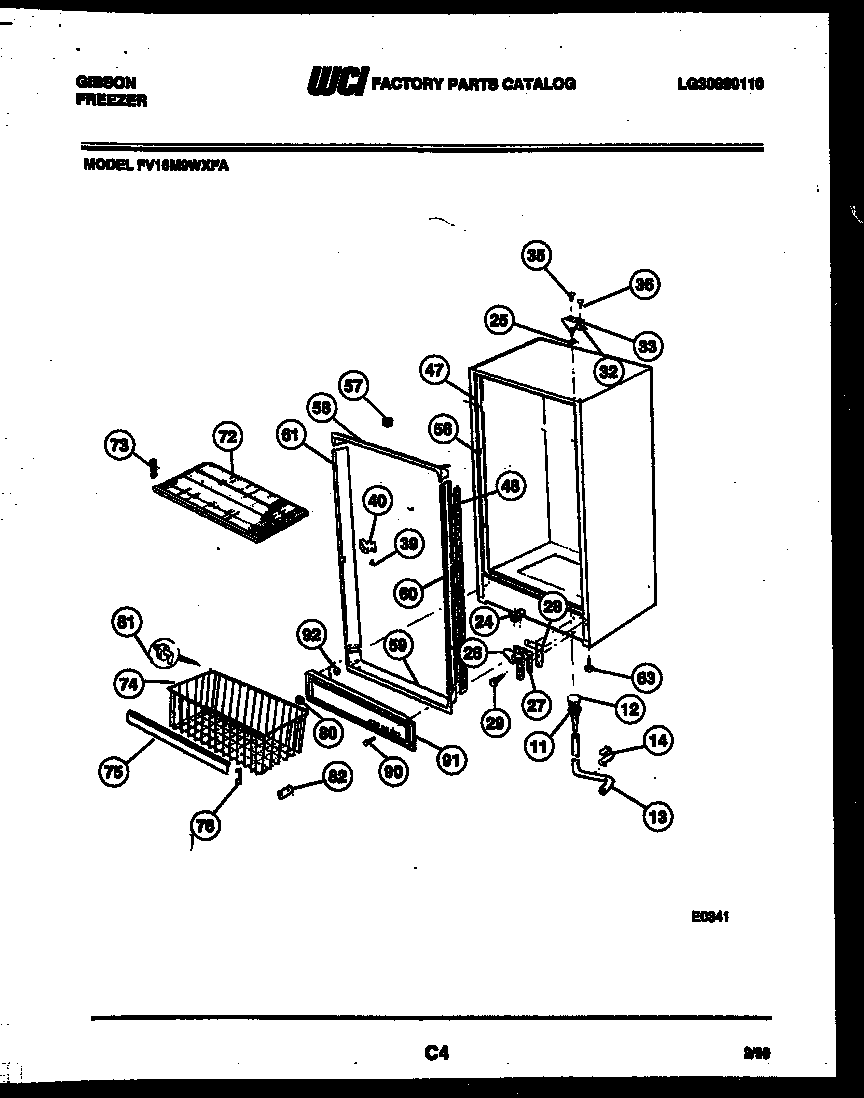

FV16M9WXFA 03 – CABINET PARTS

Products

Position	Product
11	5304511843 Frigidaire Refrigerator Sleeve
12	PLUG, DRAIN, LINER
13	5304512272 Frigidaire Hose Drain
14	WCI F122718
24	WCI F000900253
25	BEARING, HINGE (3)
26	WCI 5306594549
27	WCI F120978
28	WCI 06594550
29	154518001 Frigidaire Refrigerator Screw
32	WCI 06593894
33	WCI F300271
35	WCI 06593898
36	SCREW-HINGE, REAR
39	216858001 Frigidaire Refrigerator Screw
40	WCI F117634
47	INSULATION (CUT TO SIZE)
56	CLIP BREAKER (4)
57	SPACER-BREAKER (8)
58	WCI F121239-64
59	WCI F121241-64
60	WCI F300738
61	WCI F121320-64
63	SCREW-LEVELING (4)
72	DRY SHELF
73	SUPPORT SHELF,ADJUSTABLE
74	WCI F125542
75	WCI 5303208945
76	WCI F119952
80	5305878546 Frigidaire Refrigerator Bumper-Basket
81	BUMPER-BASKET
82	08009560 Frigidaire 0 Basket Glide
82A	SPACER
90	PIN (2)
91	WCI 5303208956
92	WCI F118003
