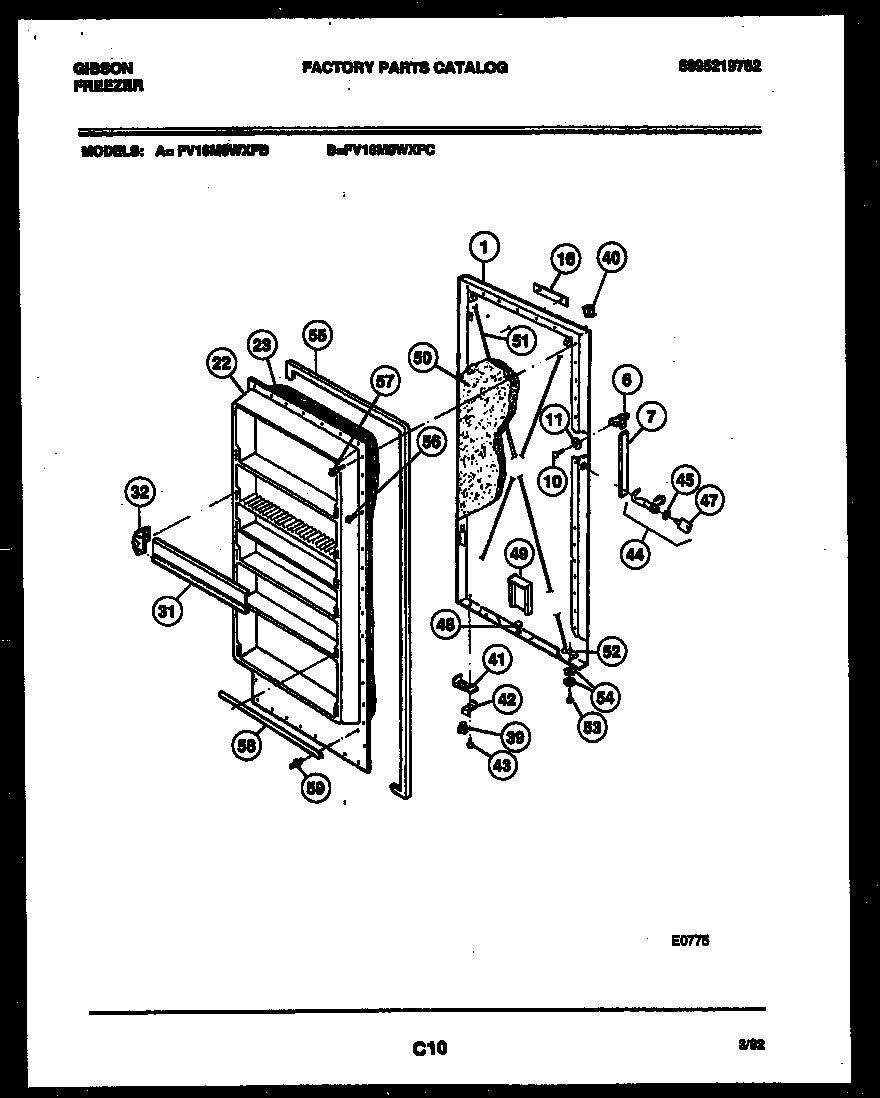

FV16M9WXFC 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303208941
6	END CAP-HANDLE
7	HANDLE, CENTER
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16A	WCI 5303208944
16	WCI 5303208943
22	PANEL-INNER (WHITE)
23	INSULATION (CUT TO SIZE)
31	WCI 5303208946
31	WCI 5303208945
32	WCI 09948971
32	WCI 5309948970
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	BRACKET-DOOR STOP
42	WCI F124623
43	SCREW-STOP
44	WCI 5303925107
45	WASHER
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE ADJUSTING
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	GASKET-DOOR
57	WCI 216022800
58	WCI 06594682
59	5303212828 Frigidaire Refrigerator Primary Clip
