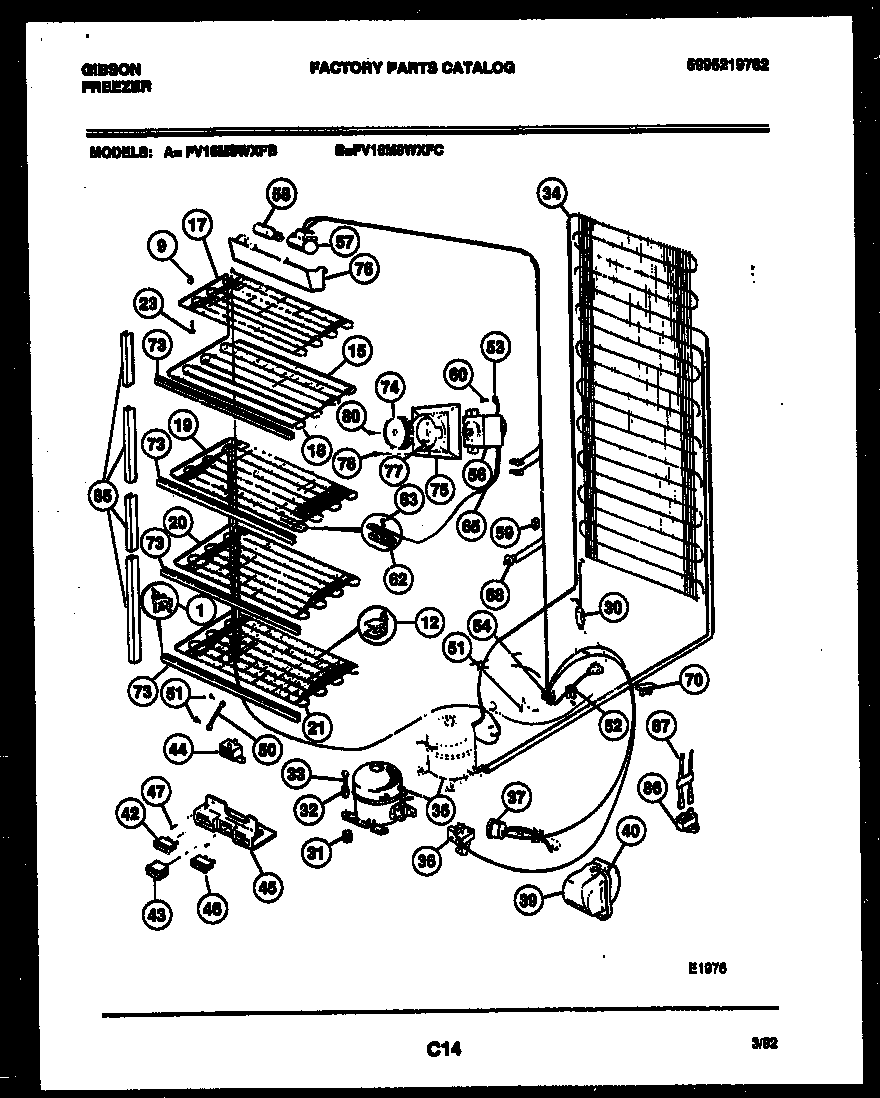

FV16M9WXFC 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
2	297001500 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
10	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
12	WCI F117447
15	WCI F125249
17	WCI F121179
18	WCI 08037939
19	WCI 08037841
21	BOTTOM SHELF
23	WCI F126260
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE
33	WCI F59211
34	5300123788 Frigidaire Refrigerator Condenser
35	COMPRESSOR W/ ELECTRICALS-SERVICE
36	WCI 5303017753
37	WCI 5308037789
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	WCI F128520
43	WCI 5303017178
44	WCI 08016367
45	WCI 08016369
46A	WCI F300210
46	WCI F128519
47	WCI 08037851
50	WCI F95424
52	5304455846 Frigidaire Refrigerator Clamp
53	WCI F125347
54	WCI 5303208963
56	WCI 216023100
57	SOCKET
58	WCI F92472
59	WCI F112321
60	216036601 Frigidaire Refrigerator Screw
62	WCI F96850
63	SCREW-CLAMP
65	TUBE
68	5309918806 Frigidaire Refrigerator Light Switch Door
70	CLIP
73A	WCI 216045701
74	WCI 216008704
75	WCI F128633
76	SHIELD-LIGHT
77	SCREW CONTROL
78	131420300 Frigidaire Screw
80	SCREW KNOB
81	216858001 Frigidaire Refrigerator Screw
85	WCI F117243-4
86	CAPACITOR
87	WCI 5303280303
