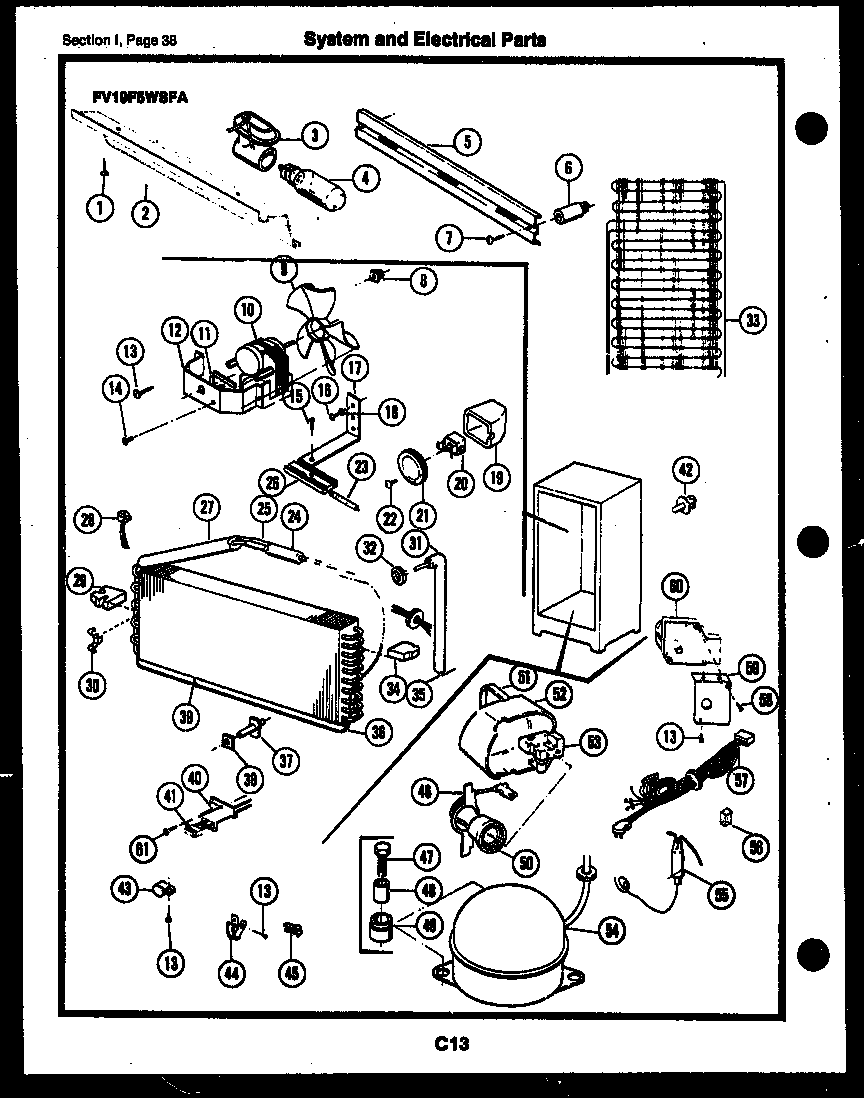

FV19F5WSFA 13 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	SCREW (2)
2	WCI F120848
3	SOCKET
5	WCI F120871
6	WCI F117151
7	WCI F12598
8	WCI F50144
9	FAN-BLADE
10	WCI F116167
11	WCI F90503-2
12	WCI F96510
13	216858001 Frigidaire Refrigerator Screw
14	SCREW-MOTOR
15	SCREW-CLAMP
16	216036601 Frigidaire Refrigerator Screw
17	WCI F88658
18	WCI F95480
19	WCI F111759
19A	WCI F112296
20	WCI F113900
21	WCI F113903
22	SCREW KNOB
22C	WCI F95424
23	TUBE
24	WCI F96886-1
25	SLEEVE
26	WCI F52940
27	INSULATION
28	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
29	WCI F111780
30	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
32	WCI F92161
33A	RETAINER LEAD WIRE
33	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
34	WCI F111779
35	WCI F112395
36	HEATER
37	WCI F111731
38	WCI F111730
39	WCI F112197
40	WCI F116294
41	WCI F115066
42	5303289051 Frigidaire Refrigerator Light Switch
43	CLIP
44	5304455846 Frigidaire Refrigerator Clamp
45	WCI F59872
46	WCI F99031
47	WCI F59211
48	SLEEVE
49	216498900 Frigidaire Refrigerator Grommet
50	WCI F99015
51	5303006412 Frigidaire Refrigerator Cover Mounting Strap
52	WCI F99029
53	WCI F99016
54	WCI F99025
55	5303305677 Frigidaire Replacement Filter Dryer Filters
56	WCI F112321
57	WCI F119662
58	WCI F52447
59	WCI F111694
60	215846604 Frigidaire Refrigerator Defrost Timer
61	SCREW (5)
