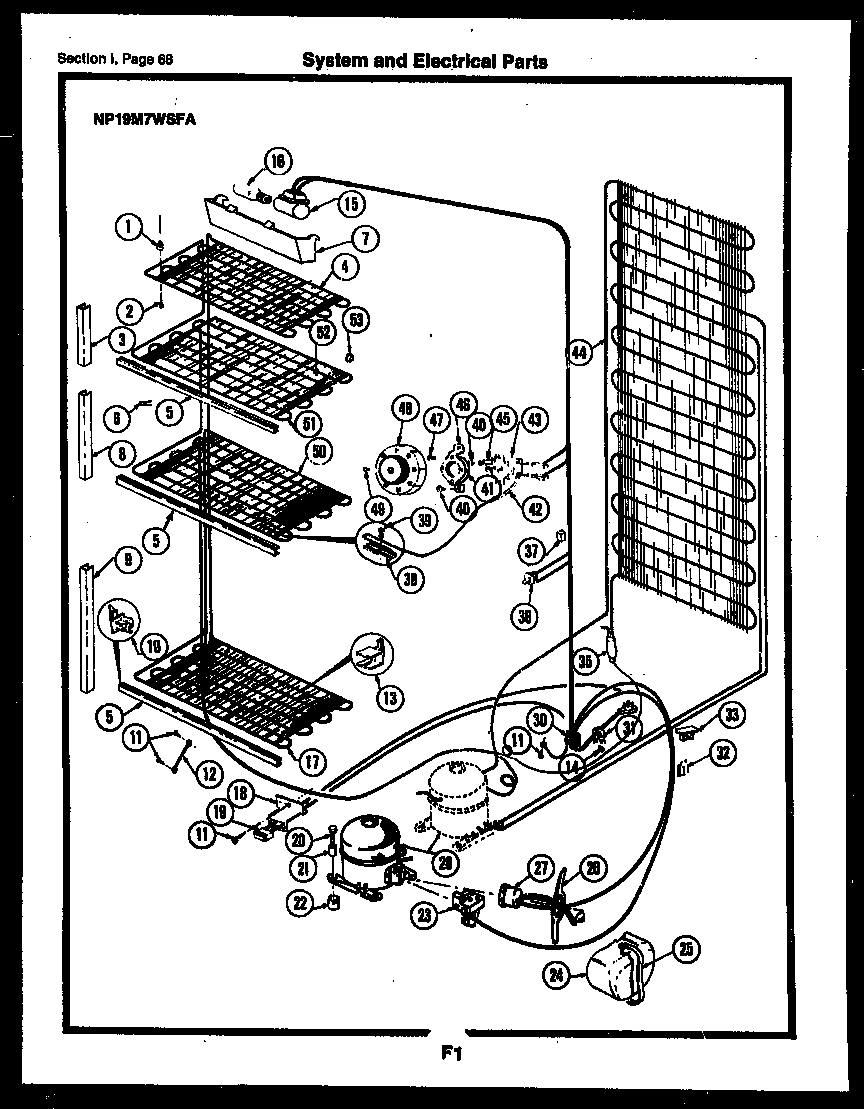

FV19F5WSFB 24 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	SPCR-TOPGRID FRONT (2)
1	SPCR-TOP GRID REAR (NON-ILLUSTRATED)
2	WCI F115299
4	WCI F119996-3
5	WCI F119270-3
6	CAP. CLIP (2)
7	WCI F123899
8	WCI F117243-7
9	WCI F117243-9
9	WCI F117243-3
10	SUPT FRONT RH (3)
10	297001600 Frigidaire Shelf Support
11	SCREW (5)
12	WCI F95424
13	WCI F117447
14	216858001 Frigidaire Refrigerator Screw
15	SOCKET
16	WCI F92472
17	WCI F116211-3
18	WCI F116294
19	WCI F115065
20	WCI F59211
21	SLEEVE
22	216498900 Frigidaire Refrigerator Grommet
23	WCI F117958
25	5303006412 Frigidaire Refrigerator Cover Mounting Strap
26	CLIP
27	WCI F117959
28	WCI F117996
30	WCI F126425
31	5304455846 Frigidaire Refrigerator Clamp
32	WCI F59872
33	RETAINER LEAD WIRE
35	5303305677 Frigidaire Replacement Filter Dryer Filters
36	5303289051 Frigidaire Refrigerator Light Switch
37	WCI F112321
38	WCI F96850
39	SCREW-CLAMP
40	216036601 Frigidaire Refrigerator Screw
41	SHIELD, COLD CONTROL
42	TUBE
43	COLD CONTROL
44	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
45	WCI F125347
46	BRKT
47	SCREW CONTROL
48	WCI F122502
49	SCREW KNOB
50	SECOND SHELF
51	WCI F116209-3
52	WCI F125249
53	WCI F86523
