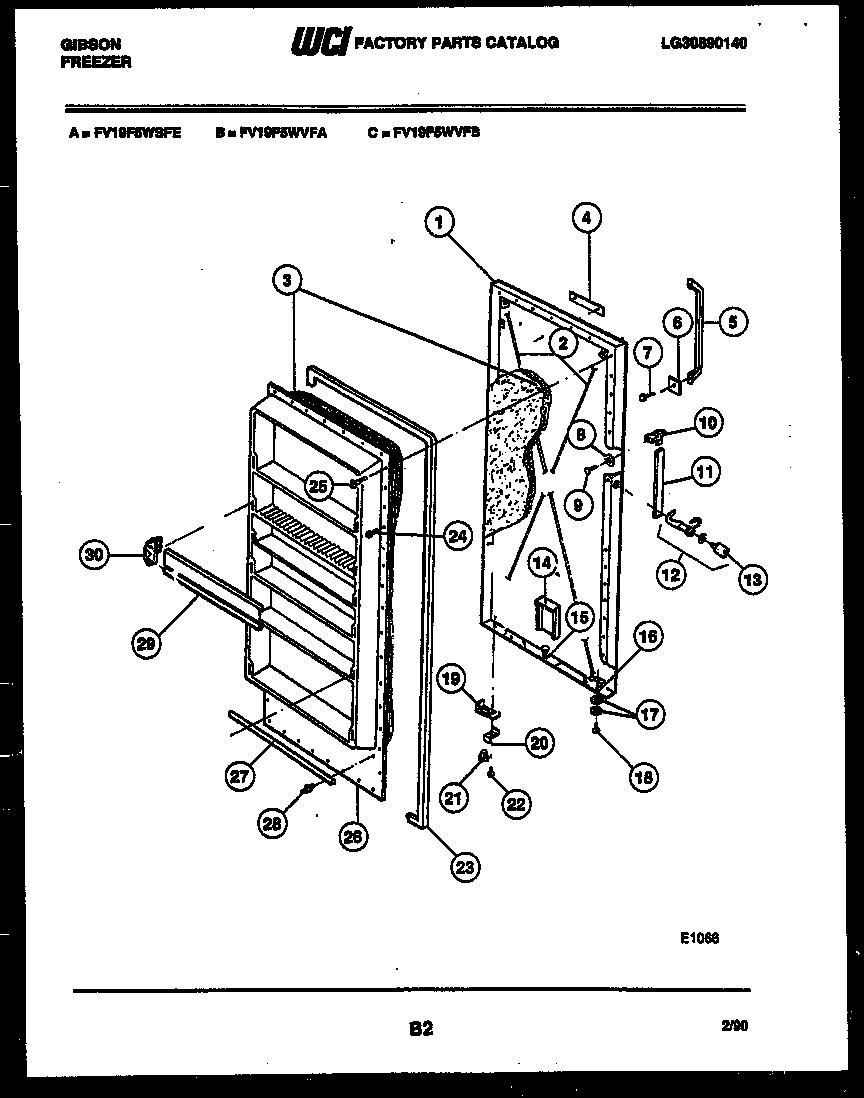

FV19F5WSFE 02 – DOOR PARTS

Products

PositionProduct
1PANEL DOOR
2WIRE
3WCI F116277
4WCI F128768
4AWCI F300246
5WCI F119165
6WCI F116980
7WCI F111365
12WCI G190358
13297147700 Frigidaire Freezer Plastic Door Key
14AIR DUCT BREATHER
16WCI F57880
17WASHER BRACKET (2)
18SCREW, BRACKET (2)
19BRACKET-DOOR STOP
20STO DOOR
21297006800 Frigidaire Refrigerator Bearing Hinge
21AWCI F84893
22SCREW-STOP
23WCI F129797
24216858001 Frigidaire Refrigerator Screw
25SCREW-PANEL
26PNL DOOR INNER
26INNER PANEL
27WCI F99438
285303212828 Frigidaire Refrigerator Primary Clip
29FRONT SHELF (5)
30AWCI F124986
30WCI F124984
