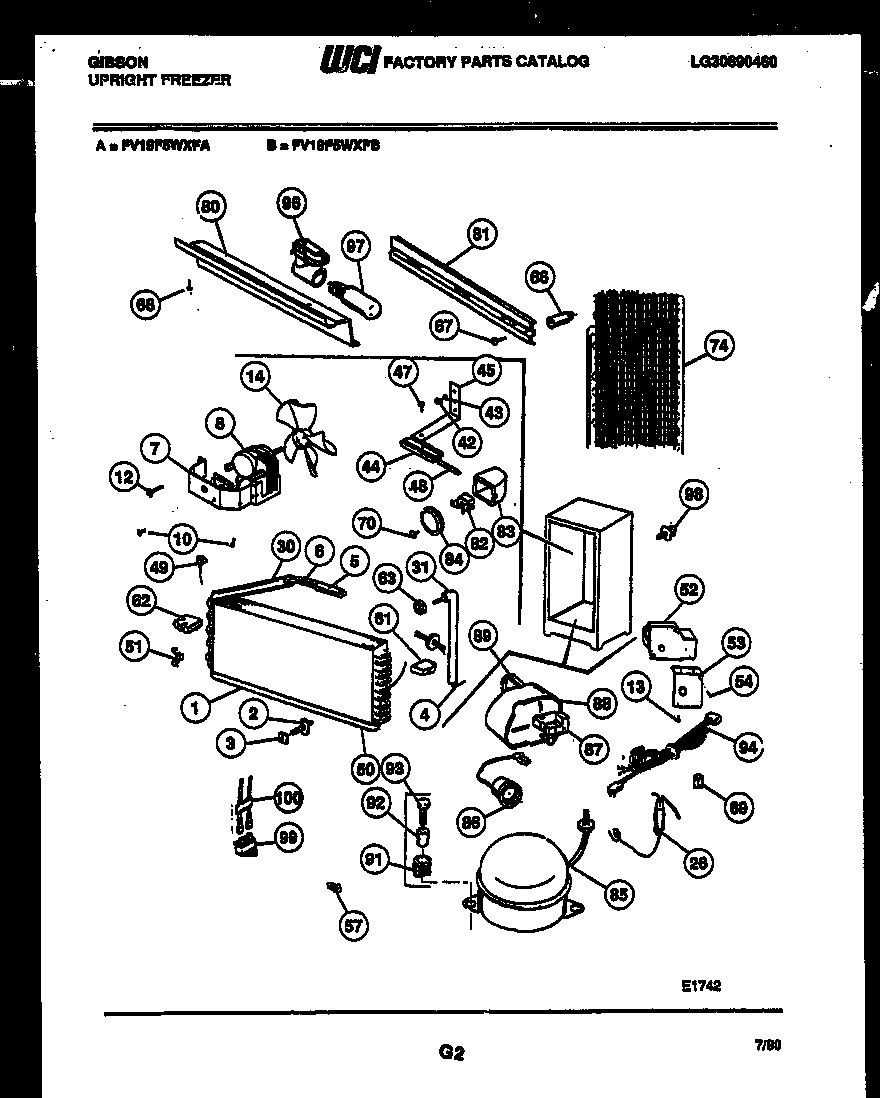

FV19F5WXFA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 3200705
2	WCI 06599544
3	WCI 08013198
4	WCI 3017673
5	WCI F96886-1
6	SLEEVE-EVAPORATOR TUBING (2)
7	WCI 08013207
8	5304442620 Frigidaire Refrigerator Evaporator Fan Motor
10	WCI 08037851
14	WCI 3205520
26	5303305677 Frigidaire Replacement Filter Dryer Filters
30	WCI 06594625
31	WCI 09948773
42	216036601 Frigidaire Refrigerator Screw
43	WCI 5300095480
44	WCI 05878562
45	WCI 06594601
47	SCREW, CLAMP, TRUSS HD CR, CONTROL
48	TUBE
49	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50	WCI 5306599535
51	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52	5304518034 Frigidaire Refrigerator Defrost Timer
53	WCI 08016580
54	SCREW
57	WCI 05878556
61	WCI 06599531
62	WCI 3200707
63	WCI 06594629
66	WCI 08000456
67	216858001 Frigidaire Refrigerator Screw
68	SCREW SHIELD
69	RETAINER, WIRE, BREAKER
70A	WCI 06594651
70	WCI 09950853
74	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
80	WCI 06594665
81	WCI F300248
82	CONTROL TEMP
83	WCI 5306599543
84	KNOB-COLD CONTROL
84A	WCI 06599553
85	COMPRESSOR W/ ELECTRICALS
86	WCI 3200957
87	216594300 Frigidaire Refrigerator Starter
89	5303006412 Frigidaire Refrigerator Cover Mounting Strap
90	CLIP-OVERLOAD
91	216498900 Frigidaire Refrigerator Grommet
92	SLEEVE-COMPRESSOR
93	CREW COMPR MTG
94	WCI 08016376
96	SOCKET, LIGHT/LAMP
97	5304517886 Frigidaire Refrigerator Light
98	5309918806 Frigidaire Refrigerator Light Switch Door
99	CAPACITOR
100	WCI 5303091425
