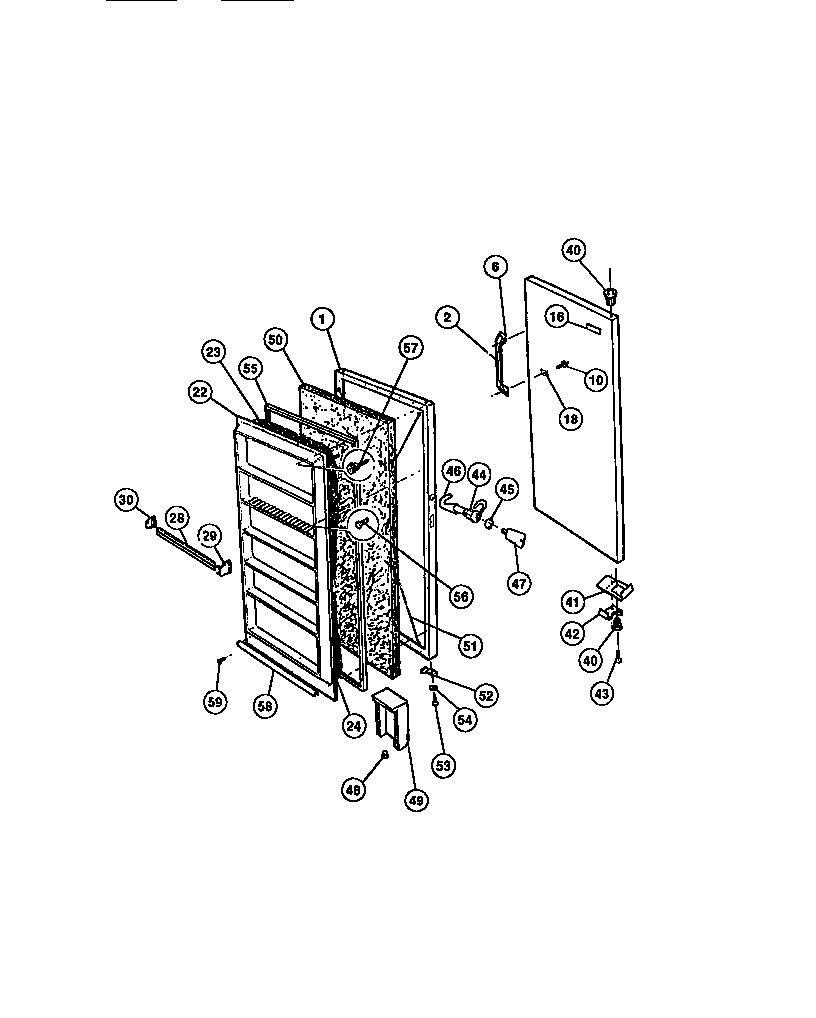

FV19F5WXFC 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303925092
2	WCI 5303209955
6A	HANDLE END CAP-BOTTOM
6	HANDLE END CAP-TOP
10	131168200 Frigidaire Dryer Screw
16	WCI 5303209962
16A	WCI 5300460947
18	WCI 5300119930
22	INNER PANEL-WHITE
24	INSULATION (CUT TO SIZE)
28	FRONT-SHELF NARROW
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40A	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206256
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	216036601 Frigidaire Refrigerator Screw
59	5303212828 Frigidaire Refrigerator Primary Clip
