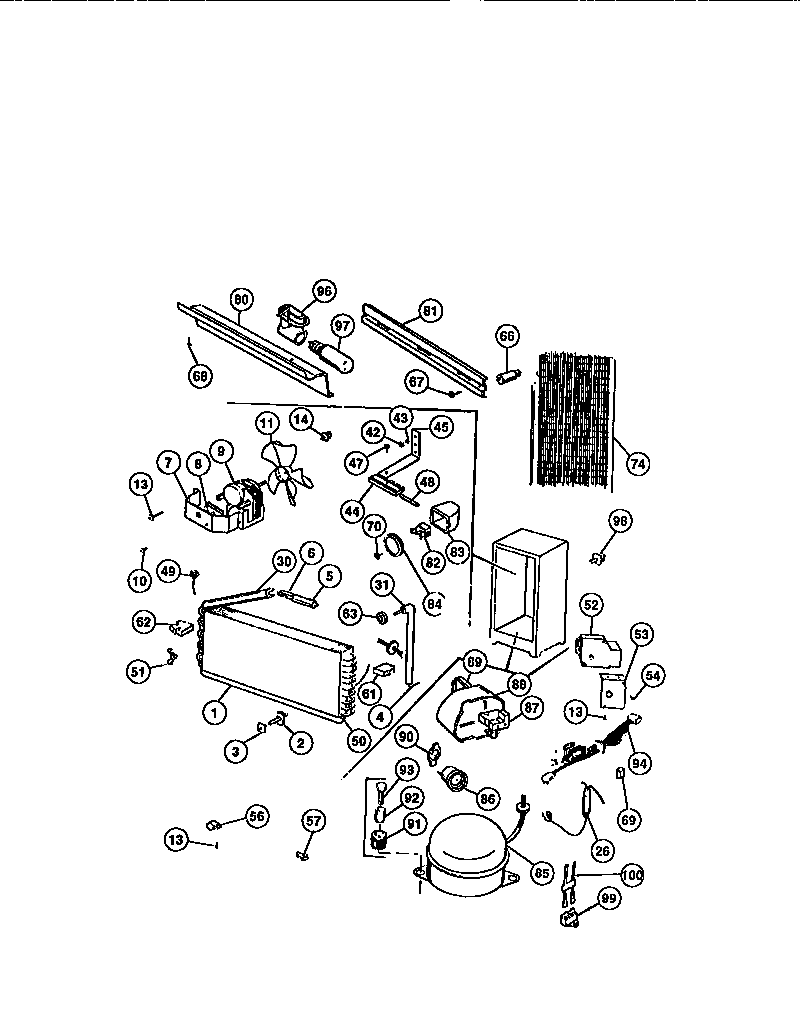

FV19F5WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

FV19F5WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FV19F5WXFC 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 3200705
2WCI 06599544
3AWCI 06599546
3WCI 08013198
4WCI 3017673
5WCI F96886-1
6SLEEVE-EVAPORATOR TUBING (2)
7WCI 08013207
8WCI 5300164002
95304442620 Frigidaire Refrigerator Evaporator Fan Motor
10SCREW-MOTOR
11WCI 3205520
14INSERT NUT
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05878562
44AWCI 06594508
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50WCI 5306599535
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52WCI 5306599542
53WCI 08016580
54SCREW
56WCI 06599553
57WCI 0578556
61WCI 3017674
62WCI 3200707
63WCI 06594629
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68SCREW SHIELD
69RETAINER, WIRE, BREAKER
70BWCI 08037851
70AWCI 06594651
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
74AWCI 09950610
80WCI 08037968
81WCI F300248
82CONTROL TEMP
83AWCI F112296
83WCI 5306599543
84KNOB-COLD CONTROL
85COMPRESSOR W/ ELECTRICALS
86WCI 3200957
87WCI 5303017753
895303006412 Frigidaire Refrigerator Cover Mounting Strap
90CLIP-OVERLOAD
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93CREW COMPR MTG
94WCI 08016376
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
99CAPACITOR
100WCI 5303091425
