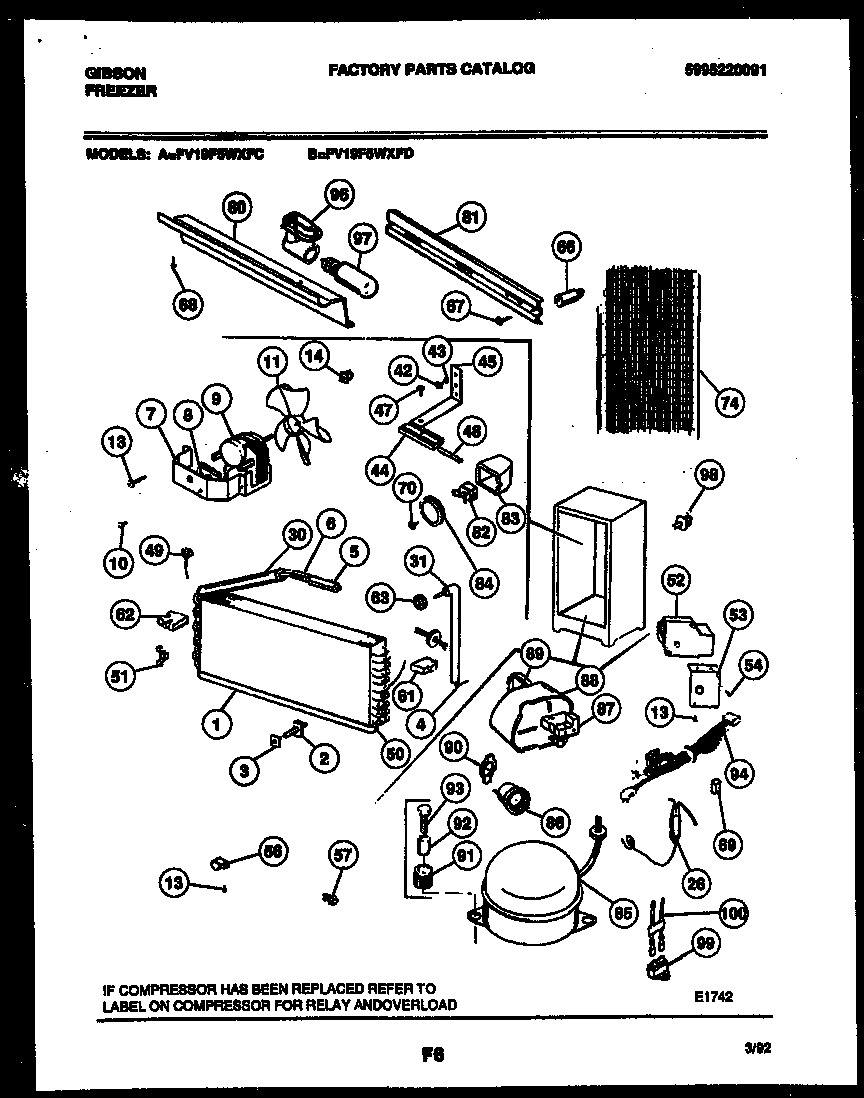

FV19F5WXFD 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5303272326
2	WCI 06599544
3	WCI 08013198
3A	WCI 06599546
4	WCI 5303272332
5	WCI F96886-1
6	SLEEVE-EVAPORATOR TUBING (2)
7	WCI 08013207
8	WCI 5300164002
9	5304442620 Frigidaire Refrigerator Evaporator Fan Motor
10	SCREW-MOTOR
11	WCI 3205520
14	INSERT NUT
26	5303305677 Frigidaire Replacement Filter Dryer Filters
30	WCI 06594625
31	WCI 09948773
42	216036601 Frigidaire Refrigerator Screw
43	WCI 5300095480
44	WCI 05878562
44A	WCI 06594508
45	WCI 06594601
47	SCREW, CLAMP, TRUSS HD CR, CONTROL
48	TUBE
49	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50	WCI 5306599535
51	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52	WCI 5306599542
53	WCI 08016580
54	SCREW
56	WCI 06599553
57	WCI 05878556
61	WCI 3017674
62	WCI 3200707
63	WCI 06594629
66	WCI 08000456
67	216858001 Frigidaire Refrigerator Screw
68	SCREW SHIELD
69	RETAINER, WIRE, BREAKER
70	WCI 09950853
70A	WCI 06594651
70B	WCI 08037851
74A	WCI 09950610
74	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
80	WCI 08037968
81	WCI F300248
82	WCI 216022900
83A	WCI F112296
83	WCI 5306599543
84	WCI 216008802
85	COMPRESSOR W/ ELECTRICALS
86	WCI 3200957
87	WCI 5303017753
89	5303006412 Frigidaire Refrigerator Cover Mounting Strap
90	CLIP-OVERLOAD
91	216498900 Frigidaire Refrigerator Grommet
92	SLEEVE-COMPRESSOR
93	CREW COMPR MTG
94	WCI 5303285490
96	SOCKET, LIGHT/LAMP
97	5304517886 Frigidaire Refrigerator Light
98	5309918806 Frigidaire Refrigerator Light Switch Door
99	CAPACITOR
100	WCI 5303280303
