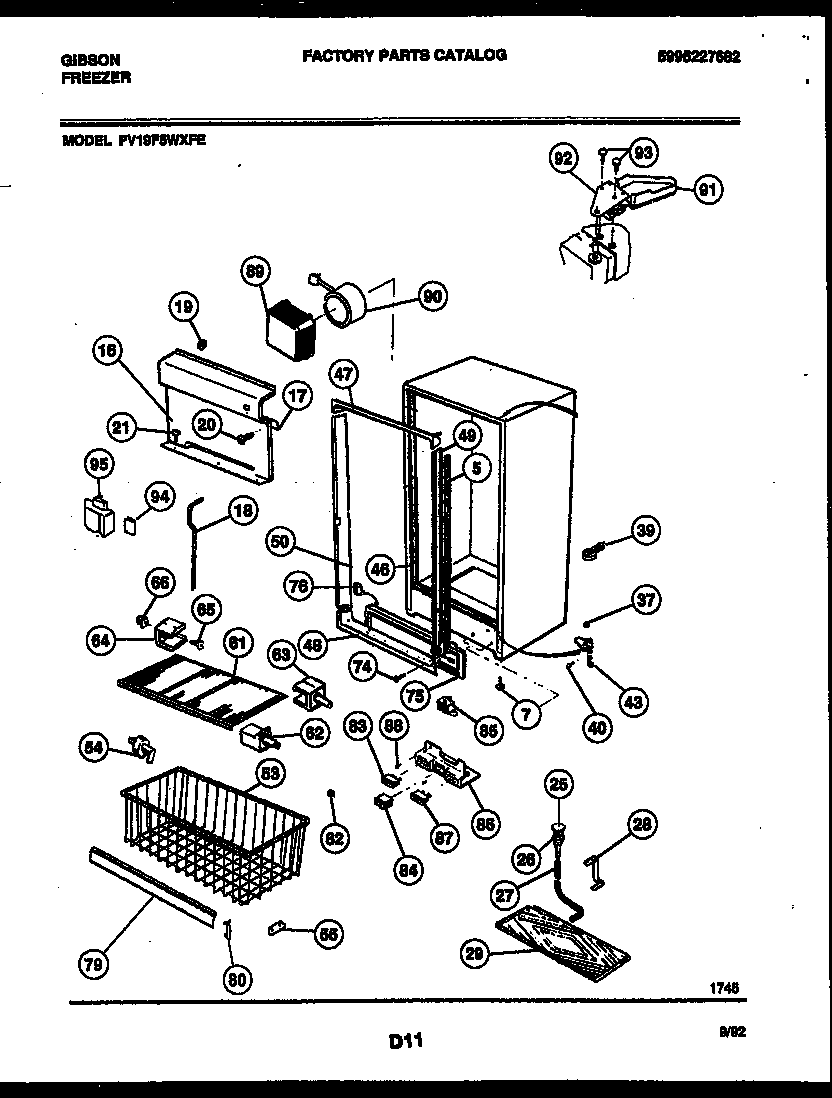

FV19F5WXFE 03 – CABINET PARTS

FV19F5WXFE 03 – CABINET PARTS

Written by

in

FV19F5WXFE 03 – CABINET PARTS

Products

PositionProduct
*53176WCI 5303286749
5AINSULATION (CUT TO SIZE)
7SCREW-LEVELING (4)
16PANEL-EVAPORATOR
17WCI 06599547
18WCI 5303212723
19INSERT NUT
20216858001 Frigidaire Refrigerator Screw
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
37WCI 5306593364
37A297006800 Frigidaire Refrigerator Bearing Hinge
39RAMP, DOOR
40154518001 Frigidaire Refrigerator Screw
43ASPACER-BREAKER (8)
43WCI 5303210383
46WCI 06594680
47WCI 06594561
48WCI 06594562
49WCI 5303280424
50WCI 216014300
53WCI 08010202
54WCI 09948791
55AWCI F129805
5508009560 Frigidaire 0 Basket Glide
61ASHELF-LOWER (3)
61WCI 5308037996
62WCI 5306594706
62AWCI 5306594707
63WCI 5306594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74FASTENER BASE PANEL
75WCI 5303209963
76WCI 5300118003
79FRONT SHELF (5)
80WCI 09950862
825305878546 Frigidaire Refrigerator Bumper-Basket
83WCI 5308002706
84WCI 5303017178
85WCI 08016367
86WCI 08016369
87WCI 08016772
88WCI 08037851
89WCI 3205349
90WCI 5308037992
91COVER, HINGE
92HINGE, TOP
93WCI 5303212937
94CLIP, U, LOCK
95WCI 216013600
