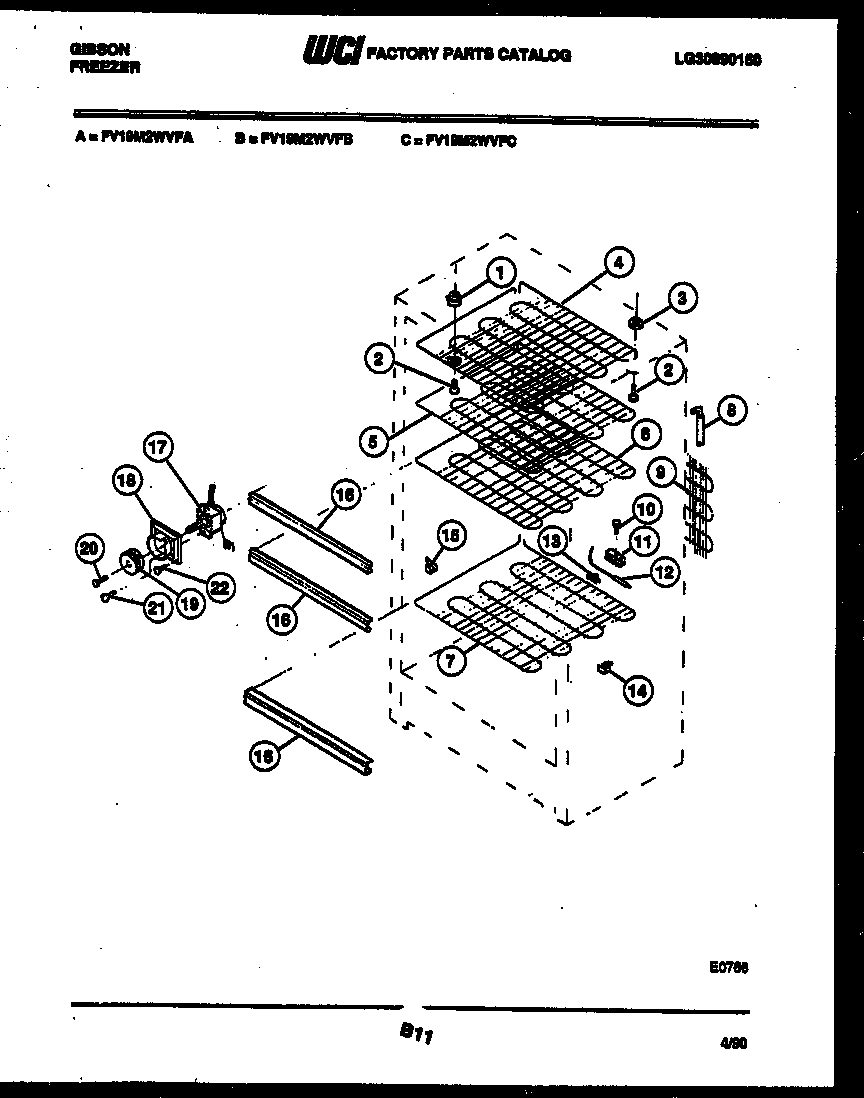

FV19M2WVFA 04 – SHELVES AND SUPPORTS

FV19M2WVFA 04 – SHELVES AND SUPPORTS

Written by

in

FV19M2WVFA 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1SPCR-TOPGRID FRONT (2)
2WCI F126260
3SPCR-TOP GRID REAR (NON-ILLUSTRATED)
4TOP GRID
5WCI F300036
6SECOND SHELF
7WCI F300037
8WCI F125249
95300083897 Frigidaire Refrigerator Condenser P1 O/S2
10WCI F92943
11WCI F96850
12TUBE
13WCI F117447
14297001600 Frigidaire Shelf Support
15297001500 Frigidaire Shelf Support
16SHELF TRIM (3)
17WCI F126974
18WCI F128633
19KNOB, COLD CONTROL
20SCREW KNOB
21SCREW CONTROL
22131420300 Frigidaire Screw
