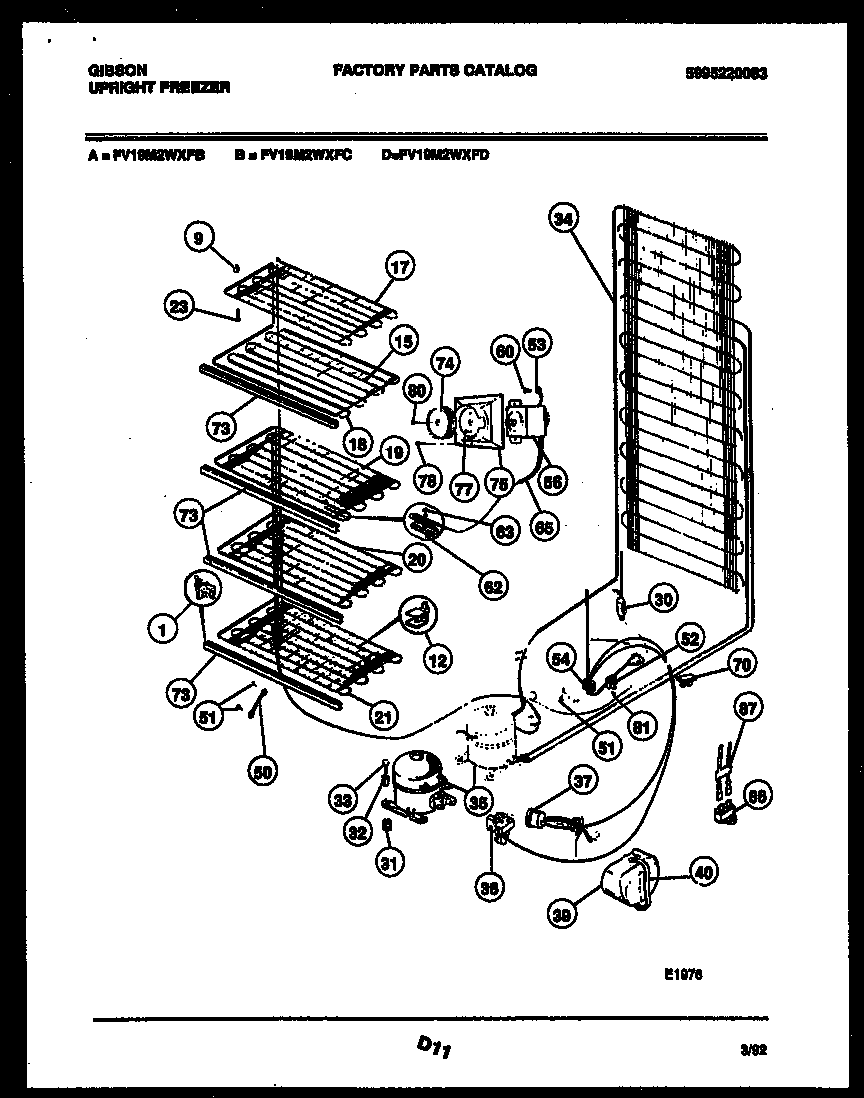

FV19M2WXFC 04 – SYSTEM AND ELECTRICAL PARTS

FV19M2WXFC 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

FV19M2WXFC 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1297001600 Frigidaire Shelf Support
1A297001500 Frigidaire Shelf Support
9ASPACER-REAR
9SPCR-TOPGRID FRONT (2)
12WCI 09949960
15WCI 08010753
17WCI 08037983
18SHELF-EVAPORATOR
19WCI 08037976
21SHELF-EVAPORATOR
23SCREW
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE-COMPRESSOR
33CREW COMPR MTG
345300083897 Frigidaire Refrigerator Condenser P1 O/S2
35COMPRESSOR W/ ELECTRICALS-SERVICE
36WCI 5303107753
37WCI 5308037789
405303006412 Frigidaire Refrigerator Cover Mounting Strap
50WCI 06594651
525304455846 Frigidaire Refrigerator Clamp
53WIRE-GROUND, TEMP CONTROL
56CONTROL TEMP
59RETAINER, WIRE, BREAKER
60216036601 Frigidaire Refrigerator Screw
62CLAMP, CAP TUBE, COLD CONTROL
63SCREW, CLAMP, TRUSS HD CR, CONTROL
65TUBE
70WCI 06599553
73FRONT SHELF
74KNOB
75HOUSING
77SCREW, COVER CONTROL
78131420300 Frigidaire Screw
80WCI 09950853
81216858001 Frigidaire Refrigerator Screw
86CAPACITOR
87WCI 5303091425
